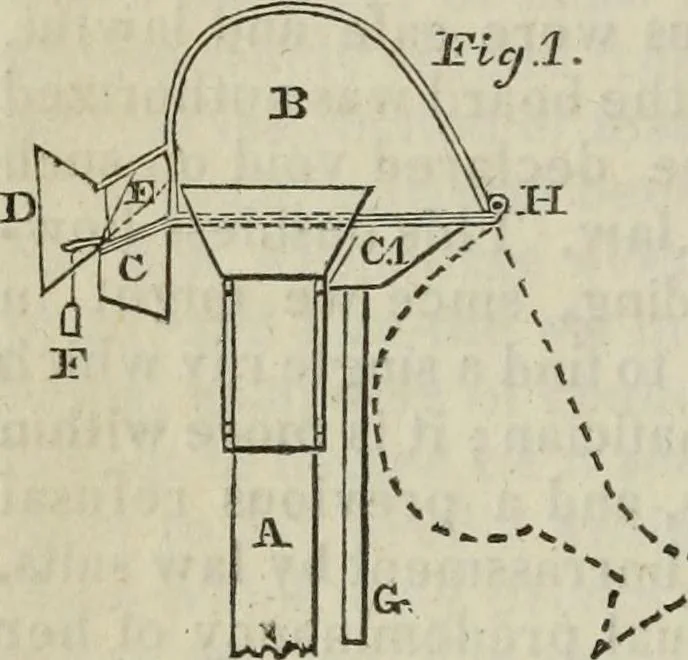

e escaped ontheir former arguments. On the law of the subject I should not have touched, because more fa-miliar to those who have already discussed it, but I wished to state my ownview of it merely in justification of myself; my name and approbation beingsubscribed to the act. With these… … A, the smoke pipe. B, cap. C C, receptacle for sparks, or cin-ders. D, funnel. E, valve or shutter; the dotted linesshow it open. F, counterbalance to shutter. G, pipe to convey the sparks to thebottom of smoke chamber. H, hinges to admit of the cap beingturned over, as shown in fig. 1. I, cross…
