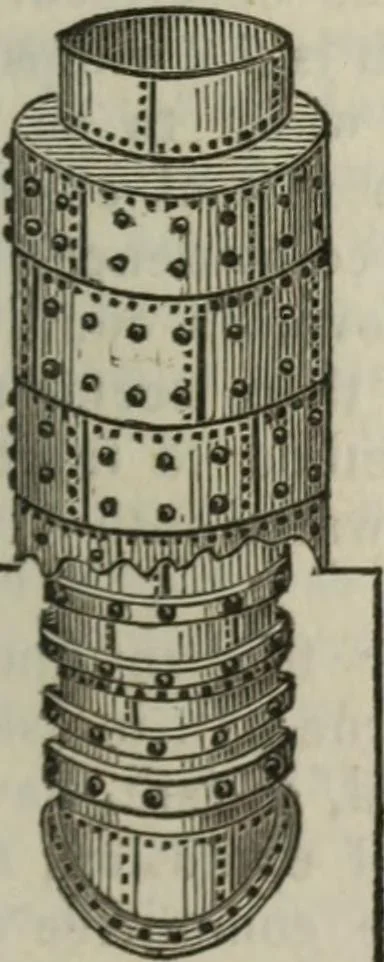

tion of the boilers. If the steam chimney of the Wm. Gibbons, orof the Ohio, had had stay bolts to connect the flue with the shell in that partabove the roof of the boiler and rings, shown in the annexed cuts, enclosingand riveted to the flue, no collapse of the flue would have taken place.I… … Fig. 1st, shows the steam chimney asstrengthened by the stay bolts andrings.
