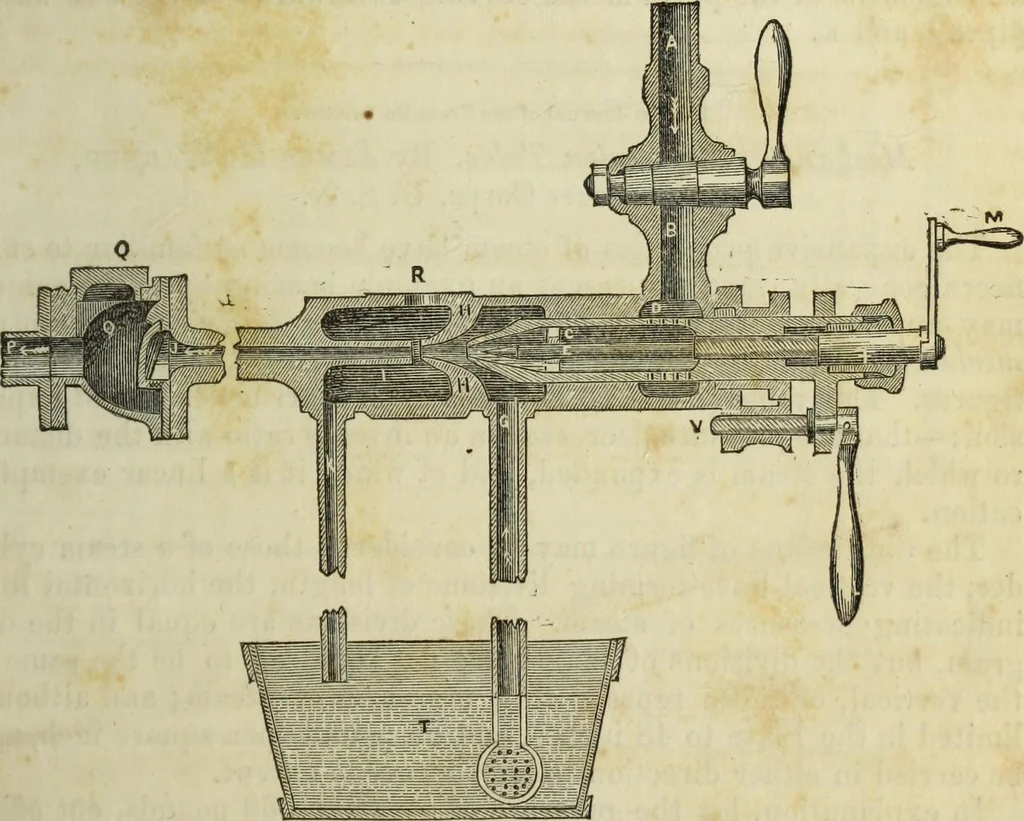

iler; o is a valve to prevent the return of the water from the boilerwhen the apparatus is out of work; P leads directly to the boiler; Qis a screw stopper, to allow of re-adjustment or cleansing of the valve;K is a tube which carries off any superabundant water which may col-lect in the space… … To work the apparatus—the diameter of the water supply pipe beingcalculated to give the necessary amount of water—the rod E F is movedforward by the handle M, until the conical end of the rod stops theorifice of the cone. The steam cock in the pipe A B is then turned on;the screw handle M is then…
