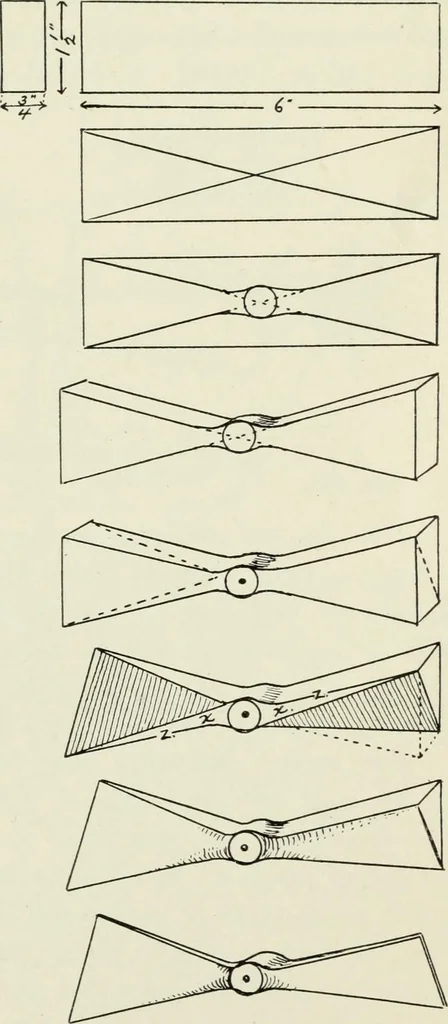

ervice-able kind. There are a number oftypes of propellers, named mostlyby men who have designed them.For simplicity in laying out andcarving, I like the Langley type. Arectangle is made of wood, sayJxlix6, Fig. 244. Draw thediagonals, as in Fig. 245. With aradius of \\ and center at the… … Figs. 244-251. 121 122 KITECRAFT AND KITE TOURNAMENTS Fig. 247. We will now take ofF two big slices, not all in one cut, but inseveral. Fig. 248 has the dotted lines showing the depth to be cut, andFig.249 shows these same parts cut away. Now cut away x and x untilthe blade is curved back to edges…
