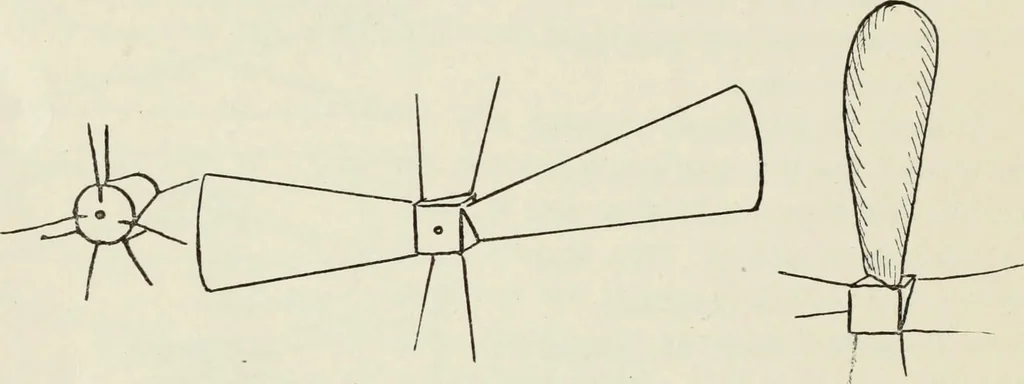

TOURNAMENTS Fig. 247. We will now take ofF two big slices, not all in one cut, but inseveral. Fig. 248 has the dotted lines showing the depth to be cut, andFig.249 shows these same parts cut away. Now cut away x and x untilthe blade is curved back to edges z and z. The cut away portions willbe as… … Fig. 252. Fig. 253. Fig. 254. The principal objection to the metal propellor is the bending thatis liable to occur when the model lights, unless there are lighting devicesunderneath, and they all add weight. The hub propellers may havemetal or hardwood veneers for fans. The hub may be round or…
