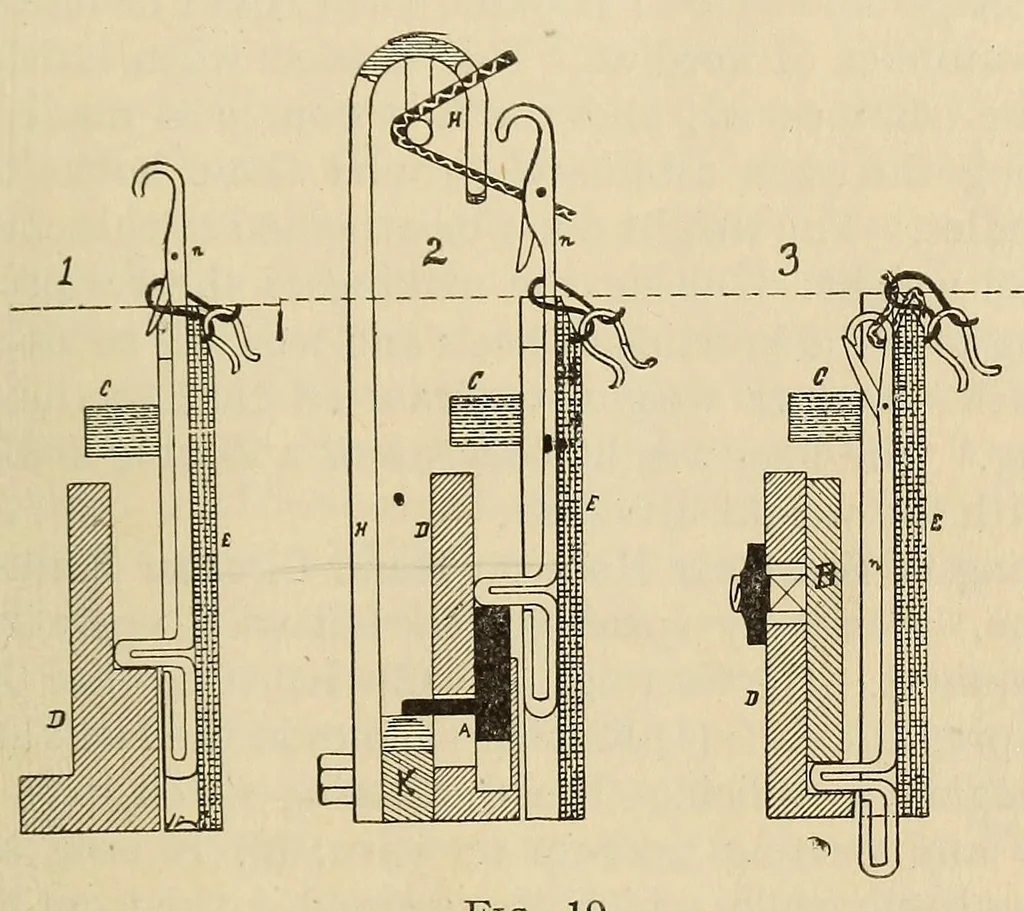

51 HAND-KNITTING MACHINES the needles by the thread guide H, which is constructed so that the latch is prevented from closing at this point. In the same diagram at 3. is shown the final knitting action, the needles being pulled downward to draw their stitches to a length decided by the adjustment… … Fig. 19 LOOPING MOVEMENTS OF HAND CIRCULAR KNITTING MACHINE altered to a known degree by the aid of a pointer and scale situated on the outside of the cam cylinder, the pointer being directly connected to the knitting cam B. The number of courses is registered automatically when tubular work is…
