Textile raw materials and their conversion into yarns : (the study of the raw materials and the technology of the spinning process) a text-book for textile, trade and higher technical schools, as also for self-instruction ; based upon the ordinary syllabus and curriculum of the Imperial and Royal Austrian weaving schools (1901)
Zipser, Julius, Salter, Charles · London : Scott, Greenwood · leaf 210

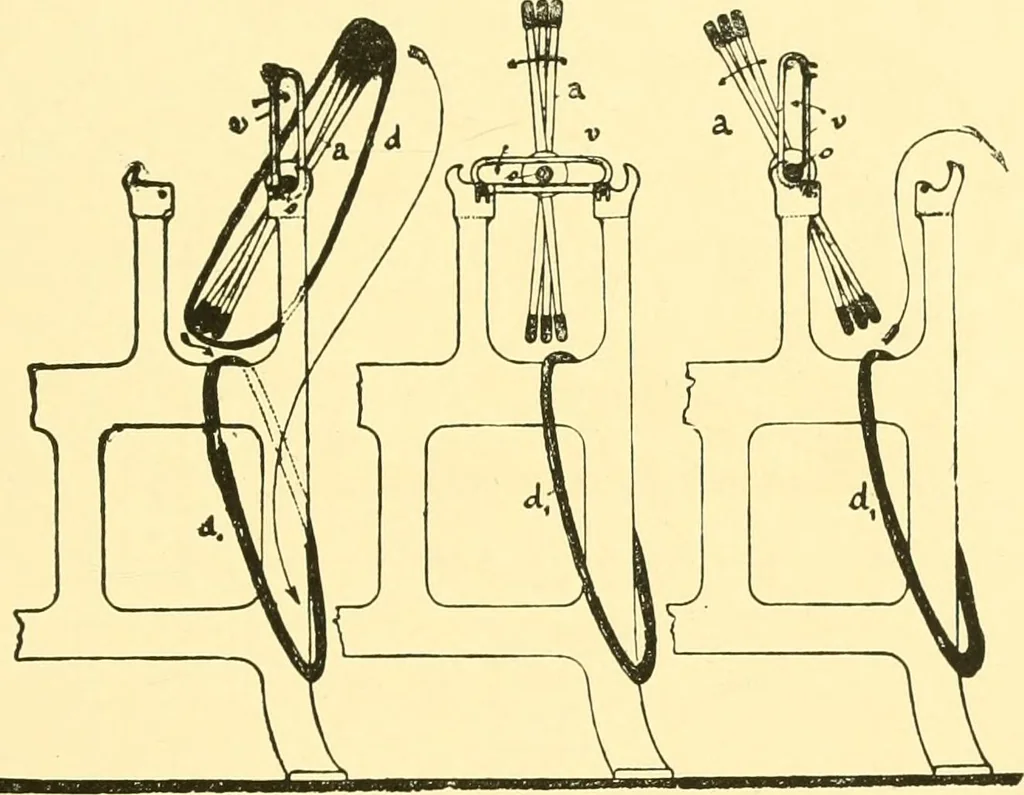

The thread, h, runsoff in the axial plane of the spindle, and passes first throughan eye or thread guide, i, then turns upwards, and aftertraversing the narrow slit in the thread rail, k (where any-adherent neps are stripped off) finally arrives at the reel. Indealing with yarns wound on spindles… … Figs. 120 to 122.—The Reel. Various positions assumed during the removal ofthe wound hanks (right-hand side view). This arrangement enables the spindle to rotate easily whenthe thread is drawn off it at- right angles. The countingmechanism (Fig. 123) consists of the worm, />, mounted on thereel…
Textile fibers · Spinning
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
