Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 124

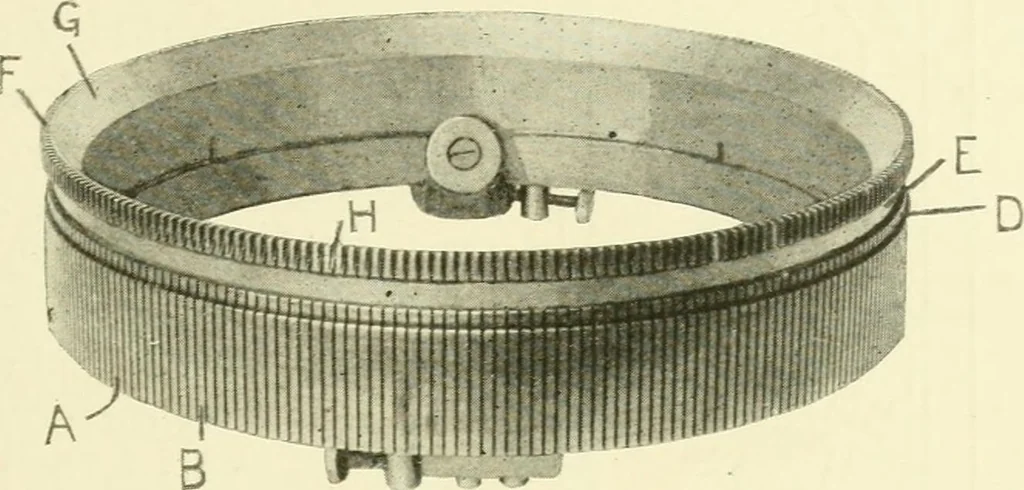

Fig. 39. Latch Needle Circular Knitting Machine.Revolving Needle Cylinder. 110 KNITTING 97 is arranged. On this cam ring are secured four studs D, to supportthe dial arch E for holding up the cap, on which is arranged the camsystem for the radial needles, and the dial. The bobbins are heldon a… … Fig. 40. Needle Cyliuder. To the right housing plate Y is secured the driving shaft bracket I,which makes the outer bearing for the driving shaft, and on the shaftJ are tight and loose pulleys between the bearings. Outside the
