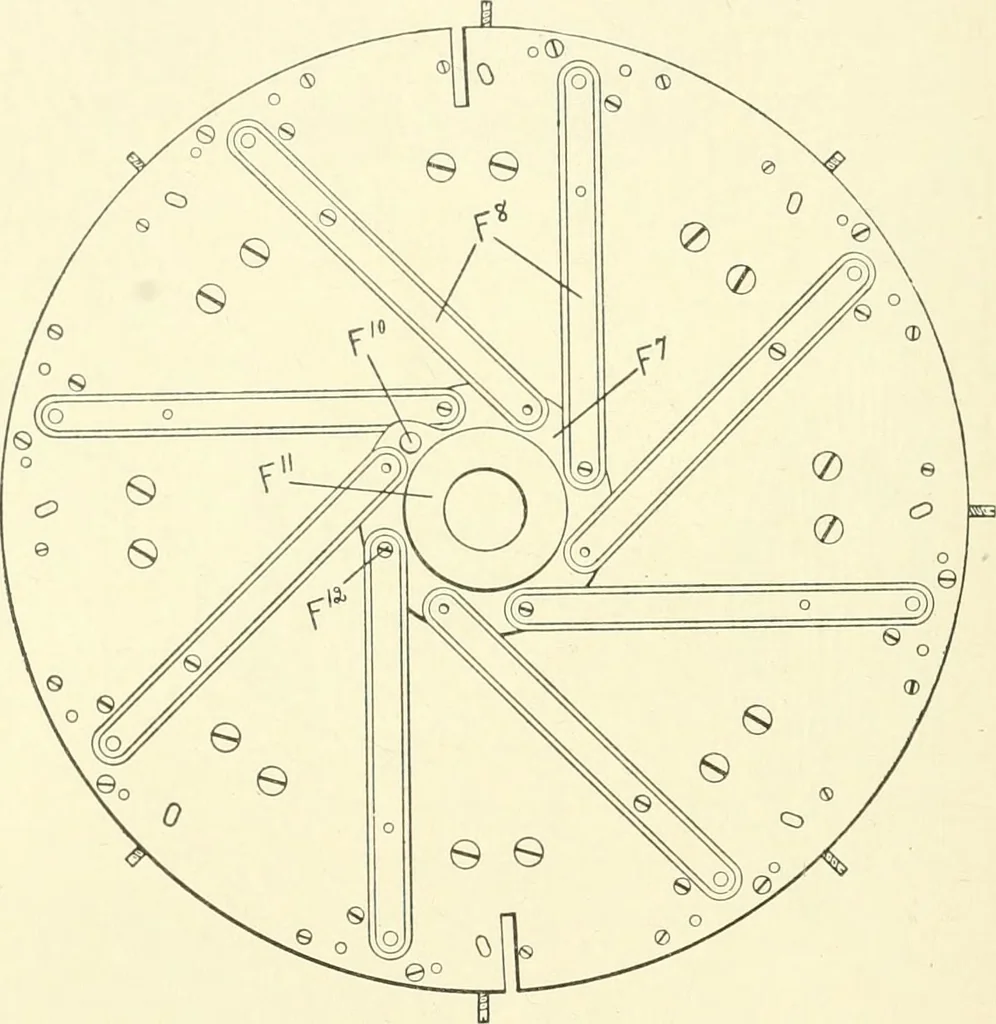

mechanism as follows: (SeeFig. 39.) On the left housing plate Z is fixed the bracket M, 117 101 KNITTING in which is joiirnaled the shaft. On the inner end of the shaft is thechain drive lever M, with a stud roller M^ and on the outer end ofthe shaft is the pawl lever M^ carrying pawls M^ and M.… … Fig. 47. Top Side of Cap Plate. to which is fixed the sprocket wheel M that carries the pattern chainM. Next to the chain ratchet is the cam wheel M, on the periph-ery of which rests the chain lever M^, which is pivoted in the topof the chain bracket ]\I. To the upper end of this bracket is…
