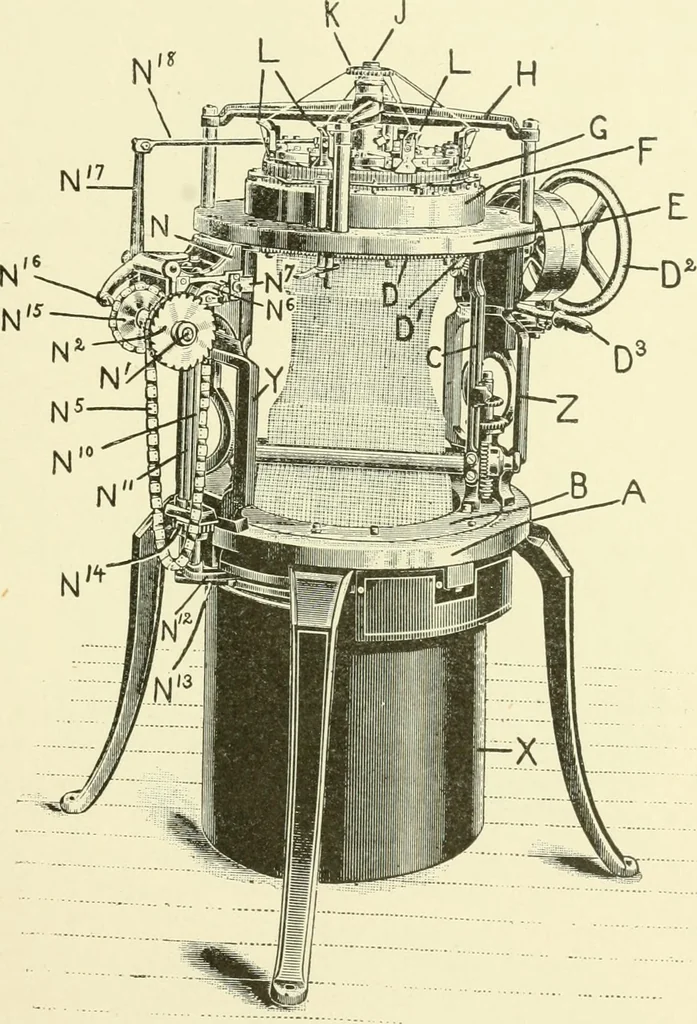

yarn measured off should beas long as convenient, and the length accurate at the same tension.To Shorten or Lengthen the Stitch. A small set screw B,Figs. 41 and 42, bears against the stud which holds the stitch camin the cam ring. By means of this set screw, the stitch cam may be 180 KNITTING 117… … Fig. 57. McMichael and Wildman-Machine. Revolving Needle Cylinder. and turn it out to tighten or shorten. The dial cam is adjusted in asimilar manner, by means of the set screw F, shown in Fig. 45.Turn the set screw in to lengthen, and out to shorten or tighten thestitch. 131 118 KNITTING The…
