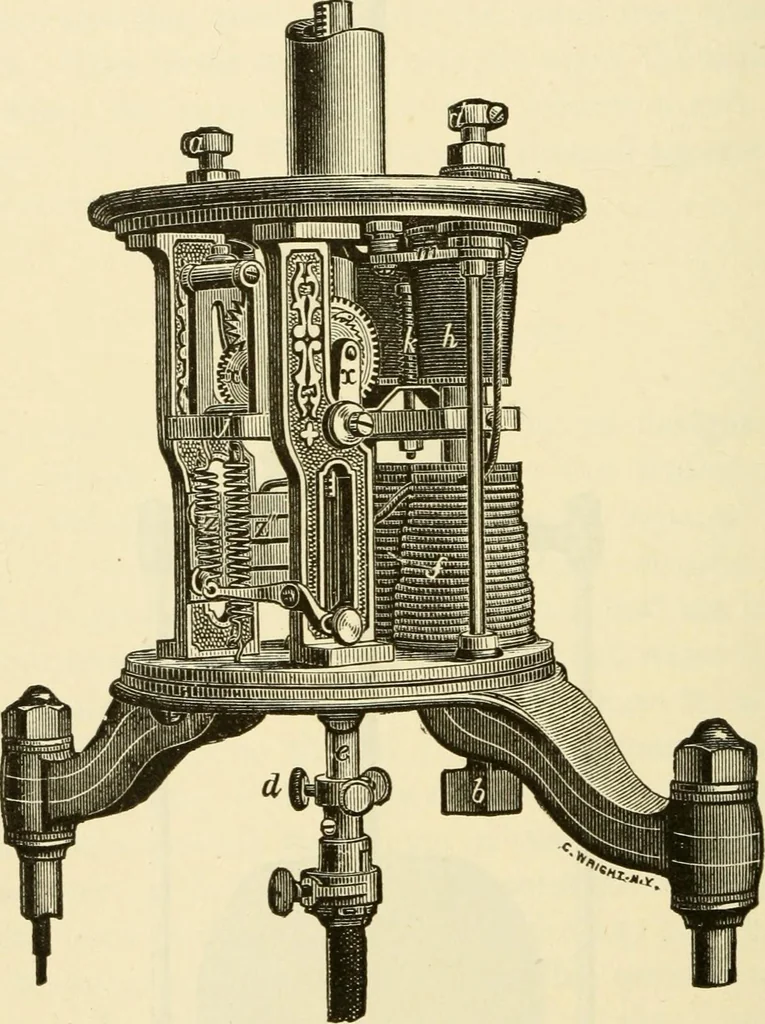

Fig. 255. 426 THE ELECTRIC LIGHT. rent in passing through tlie hamp to produce the light, and alsothe action of the automatic cut-out, operated by an abnormalattraction of the magnets in case the lamp fails to feed. Thecurrent enters at the upper left-hand corner, marked a, followingthe direction… … Fig. 256. through the heavy connection around the magnets// thence tothe right of the figure and out to the next lamp. The action isas follows: The carbons being in contact, the current will flowin the direction shown by the arrows, through the carbon rod e,through the carbons, thence through the…
