Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 158

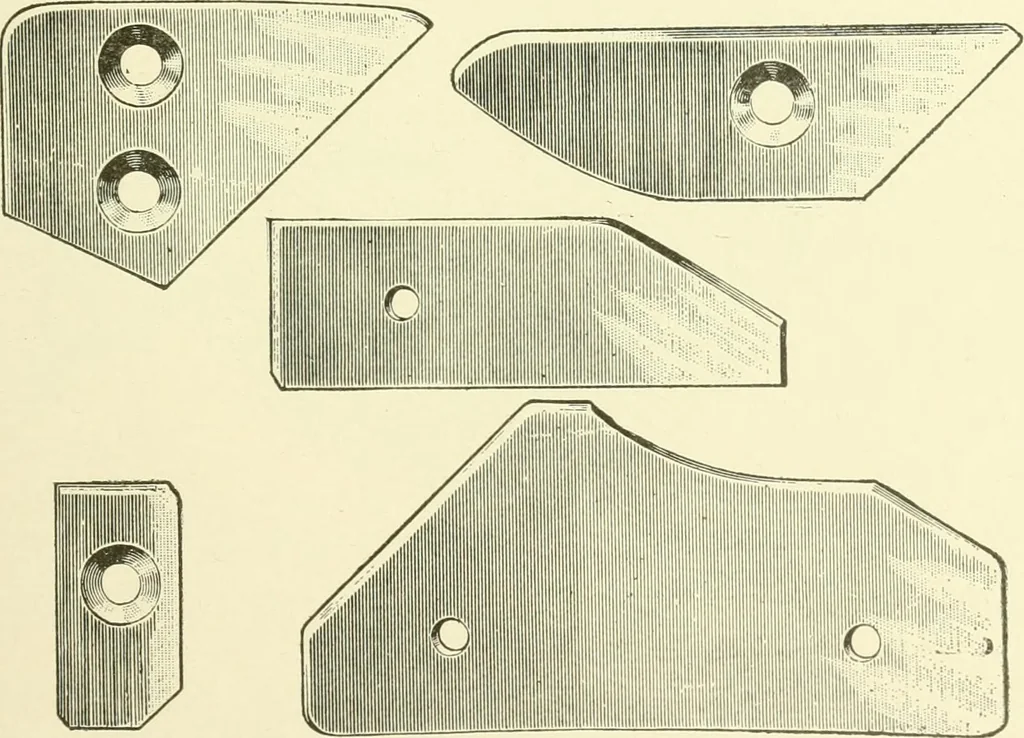

Fig. 69. Cam Ring Section. take-up roll 0^ is geared at 0 to the driver roll 0* at the opposite endfrom the worm gear, Fig. 60, and is journaled at each end in slidingblocks, guides being provided for that purpose in the take-up stand- … Fig. 70. Cylinder Cams. Full Size. ards. These blocks and guides are so arranged that a yieldingpressure is maintained on the frame by means of coil .springs confinedin sleeves fixed on the side of the take-up standards and against eachblock. 141 128 KNITTING The worm gear is loose on the driving…
