Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 194

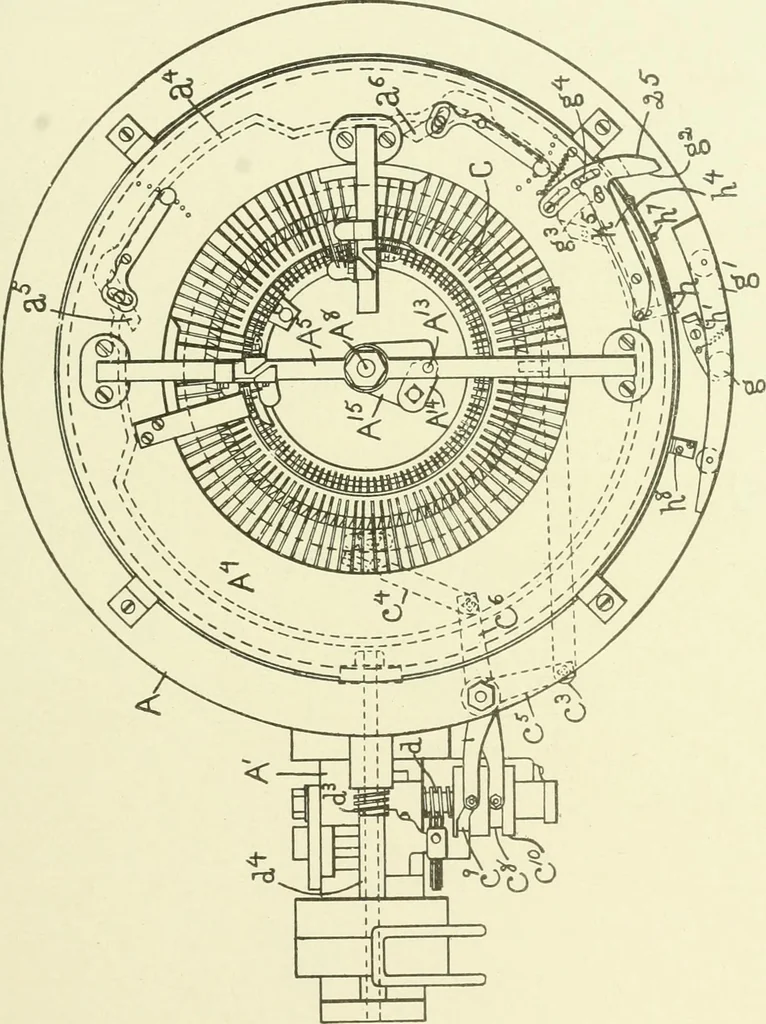

oved for the reception of the needles; the parts 3 and 4 being soshaped and attached as to leave a circular space in which is placedthe segmental racking guides C. The Racking Mechanism. (Fig. 9G.) The racking guides C have 172 KNITTING 157 fastened to the under side the studs c, which are extended… … lever having a cam roller entering one of two grooves in the peripheryof the cam hub c^^ fastened to shaft d, having loosely mounted uponit a worm gear having its sleeve inserted in a bearing made m the 173 158 KNIITING extension A\ the gear being engaged and rotated by a worm d?,carried by a…
Knitting machines
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
