Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 196

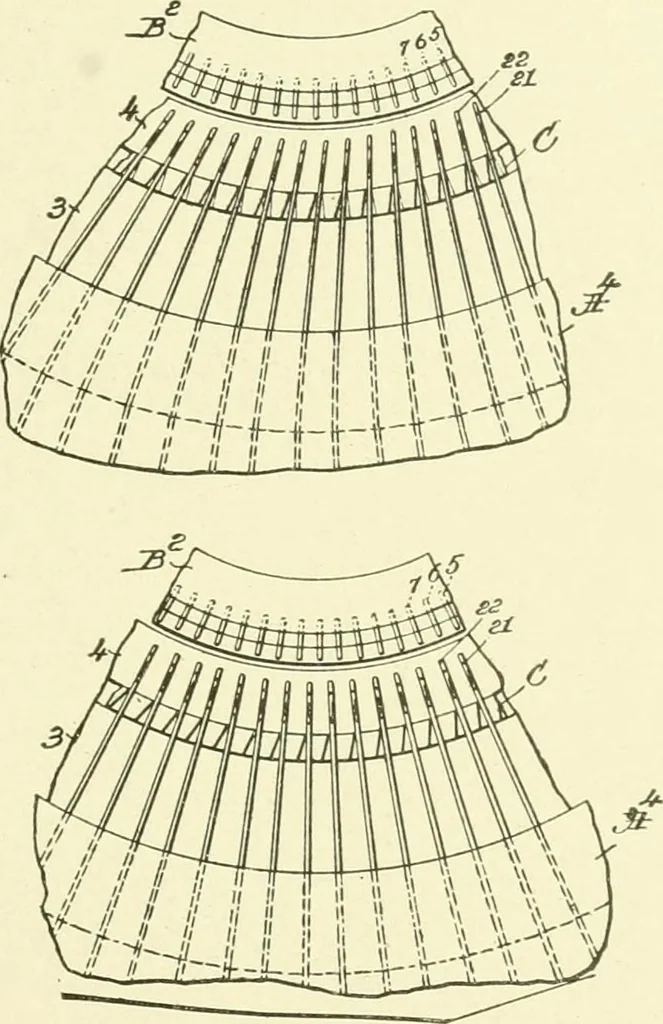

the 174 KNITTING 159 cylinder needle bed, with some of the dial needles, the parts beingin position for regular knitting. Needle 21, in the lower diagram ofFig. 95, if pushed forward, will enter the space between the grooves5 and 6 for the cylinder needles; but when the racking guide C ismoved to… … Fig. 95. Part of Dial Needle Bed. Cam Plate, etc. The Needle.sand Racking Guide in Different Positions. This change of position of the dial needles, causing them to enterbetween different cylinder needles from those with which they co-operate in regular knitting, makes a change of stitch, and the…
Knitting machines
