Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 255

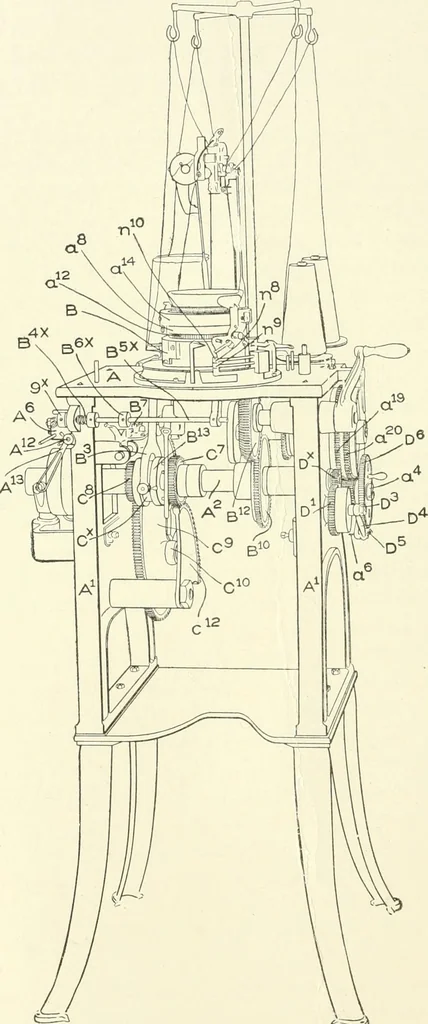

and upward, with relation tothe cam cylinder, and the lip of the picker engages the underside of theneedle butt, carrying the needle upward out of the active series, theneedle butt being transformed from the notch of the picker to an in-clined guide or cam which completes its movement, from the… … Fig. 133. Acuit; Pull Automatic Machine. 232 KNITTING 215 pickers for transferring the needles from the working to the idle seriesduring the narrowing operation, the only difference being that thedepressing pickers are provided with lips which overlie the needle butt,which is in engagement with the…
Knitting machines
