Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 261

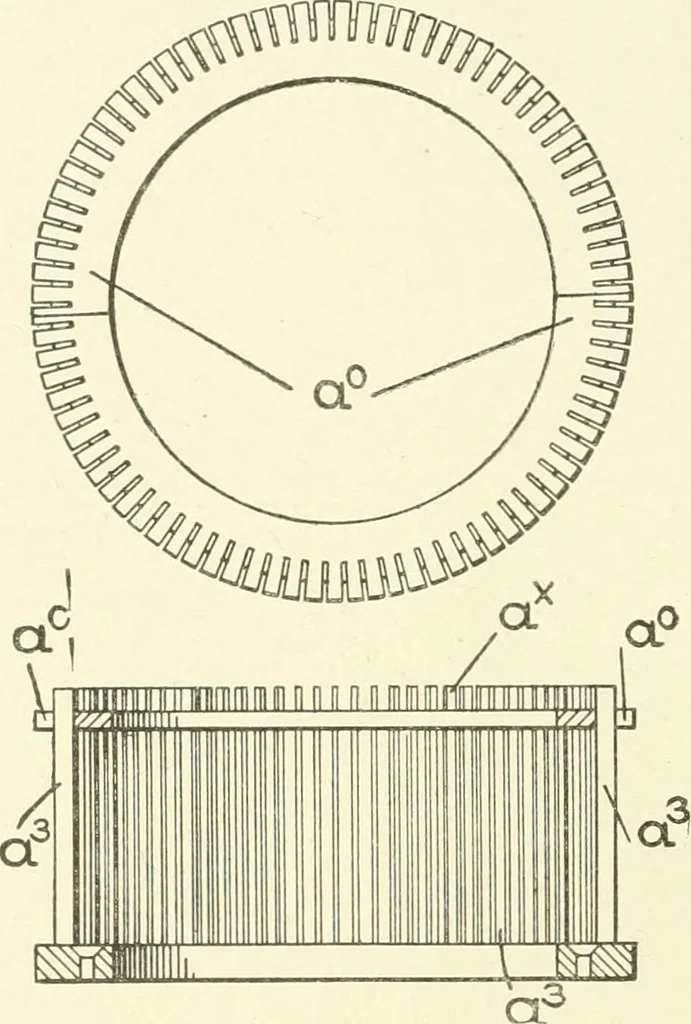

° which take the stitches as they are formed andpush them back from the needles thus taking-up the work as fast asit is knit, are prevented from being raised (by the work) by the ringb which is provided with the flange ¥. Between the flanges and the … Fig. 135. Skeleton Cylinder. top of the needle cylinder, are contained the jacks, free to be actuatedhorizontally in the groove in the jack cam ring a. The ring b issecured to the needle cylinder by means of a set screw &^. In circular knitting the cam for moving the sinkers is so locatedwith…
Knitting machines
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
