Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 264

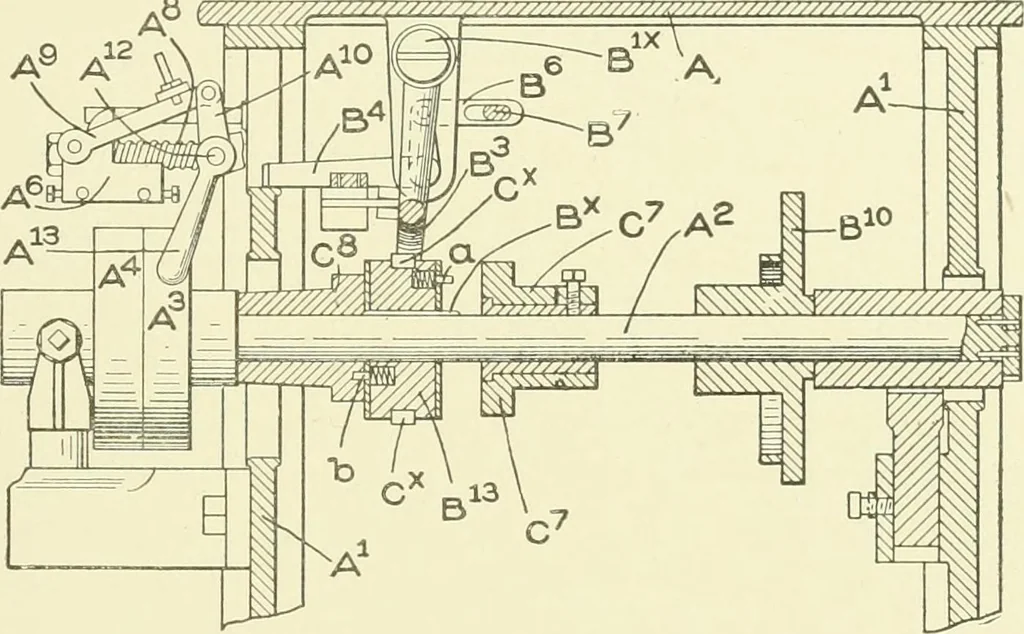

ides of the hub. A shortdistance from the hub is a loose gear O mounted on a flanged bushingand collar arrangement secured to the shaft by a set screw and pro-vided with a hole in the clutch face to receive the pin. At the oppositeside of the hub and loose upon the shaft, is the pinion C^ which… … Fig. 137. Method of Driving. The gear C has a crank pin (See Figs. 138 and 139) providedwith a link C^ which, at its opposite end, is attached to a stud on thesegment gear C^^ pivoted at C^^, the segment engaging the loose gearC^ and oscillating It continuously. When the pin h of the clutch hubB^…
Knitting machines
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
