Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 272

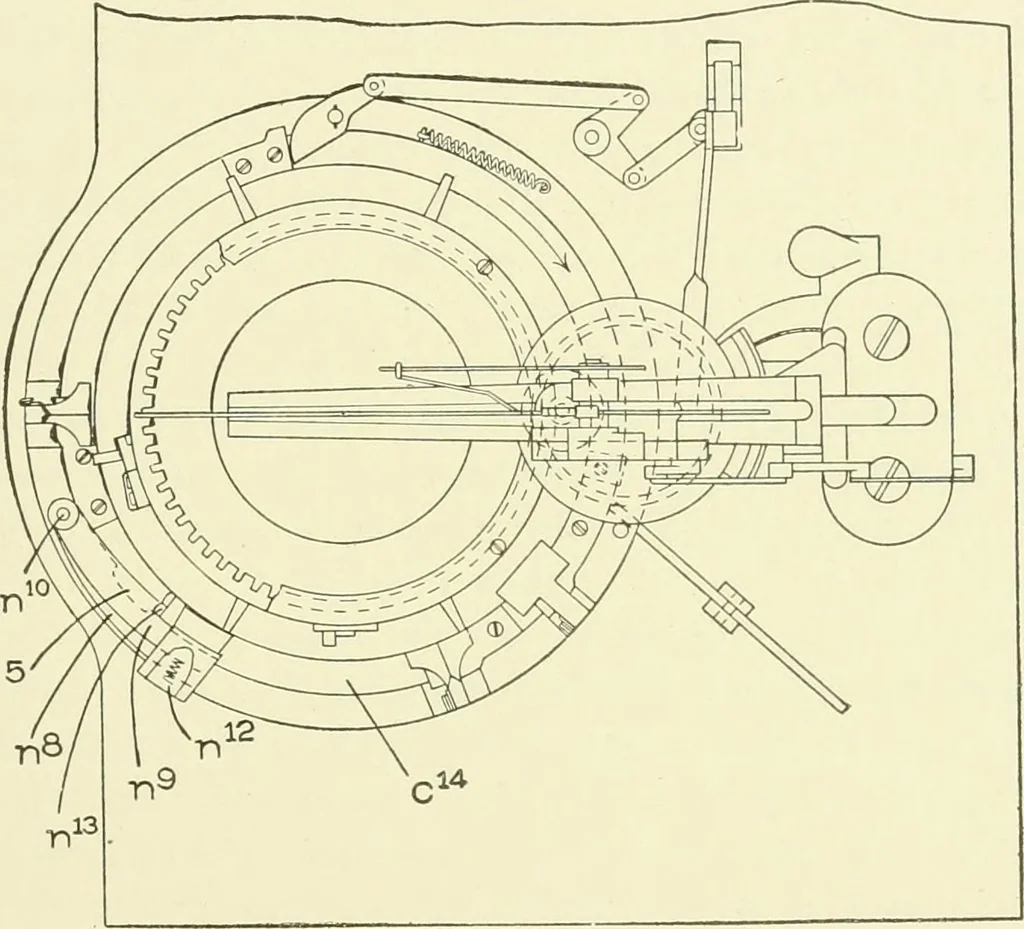

put in new ones; replace thecylinder and lock the brass ring in place. Push the elevating camdown, and push down ten or twelve needles directly above the switchcam shifter. This will allow the automatic switch room to change.Turn the machine and the neeflles will all go down to the level. Thendrop… … Fig. 144. hose, the two indicators on the outside end of the pattern wheel shouldstand together. On the inside end of the pattern wheel are two discsor wheels. Each of these discs has a trip or pawl fastened upon it bya clamp, which can be moved back and forth by loosening the screwswhich hold it…
Knitting machines
