Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 289

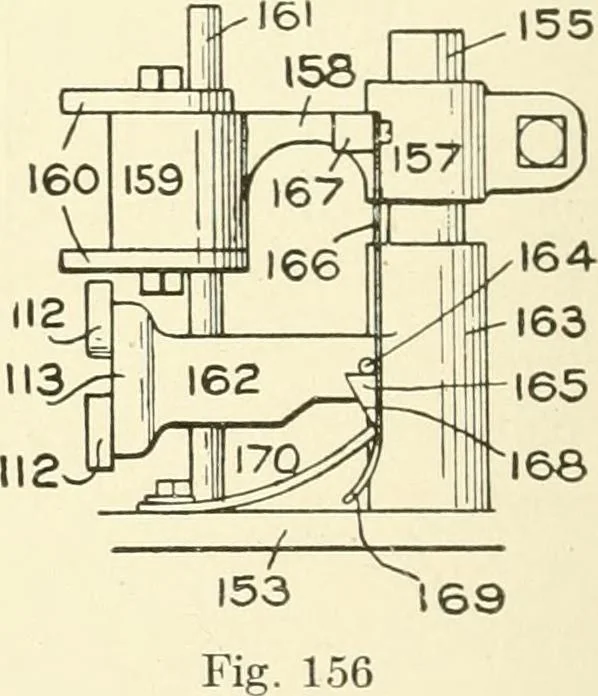

al arm,having a sharpupper edge projecting from an elbow-lever111 pivoted to the side of the standard-offset 101. The cams 112 have nomovement other than a vertical one. As the outer end of lever 111 sweeps around between them, itcomes in contact with one or the other, according to the elevation… … 202 KNITTING 245 in the other direction by a stop 114 secured to one side of the offset 101,as shown in Figs. 152 and 160. To the feet of the standard 100 issecured a curved plate 115 (see Figs. 153, 157,158, and 159) having anopening through which the picker extends. When narrowing is to…
Knitting machines
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
