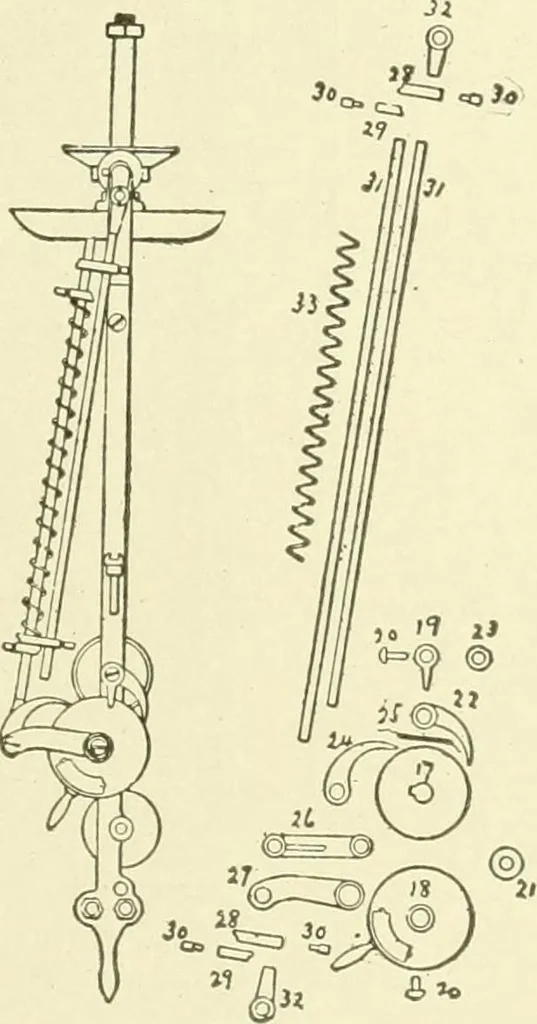

Tlie effects of eitherwould be broken needles, a smash, uneven cloth and possibly apull off. The take-up which is shown in Fig. 18 consists of threerollers contained in a frame with connecting mechanism to turnthem in the required manner. It is suspended to the cross-treeextending from the top of… … Fig. 18. Take-Up and Parts. bottom of the frame. The spreader bow is supported and rotatedby the vertical shaft. The weight of the take-up is supported bya hardened rounded steel collar (not shown in the cut) seated in ahardened steel cup, 5. This is sufficiently free to allow the take-up to move…
