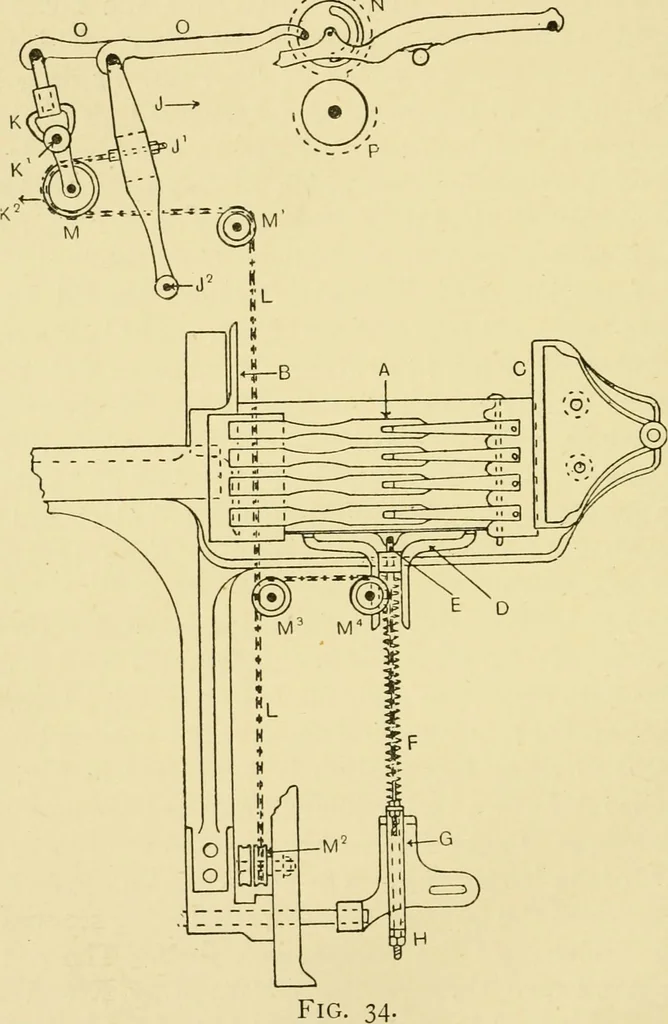

side which works in the two slidesB and C of the framework. The boxes rest on the fork D,through which the box rod E passes, this being secured tothe lug underneath the bottom box shelf. The rod Epasses downward through the spiral spring F and thetube G, and is held in position by means of the… … then carried forward over the pulley M fixed in the leverK, around the pulleys M^ M^. M^, M^, and is then finally NEGATIVE BOX MOTION 131 secured to the projection on the tube G. The levers Jand K are actuated by means of the vibrators N, to whichthey are attached by the connectors O, the vibrators…
