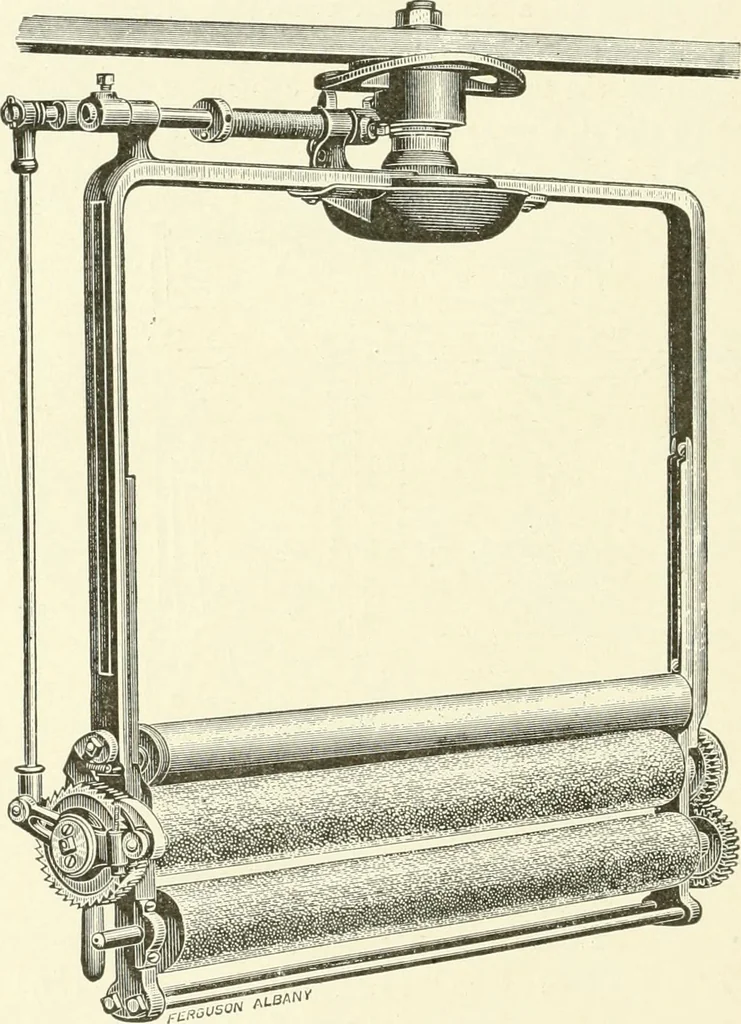

sed the shipper. The bevel pinion 11,on top of tlie frame takes its motion from the standing gear 9, onthe crosstree and by means of the crank 32, and spring connectingrod 33 and 31, reciprocates the dog 24, engaging the ratchet gear 49 38 KNITTING. 17, on the end of the upper quartz covered roll… … Take-Up, Outside Drive. the cloth v^^hile being knitted, and is a most important factor inproducing good cloth with a minimum of broken needles, detaildrawing is given in this diagram. The crank connection 32, is attached to tlie upper end of theconnecting rod 31 ; on the other connecting rod 31,…
