A treatise, giving a thorough description of the properties and supply of the fibres, as well as the various processes required for converting wool, cotton, silk from fibre to finished goods, covering both woven and knit goods ... construction of the most modern improvements to preparatory machinery ... accessories relating to construction and equipment of modern textile manufacturing plants .. (1895)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, E.A. Posselt; London, Sampson Low, Marston & Co · leaf 153

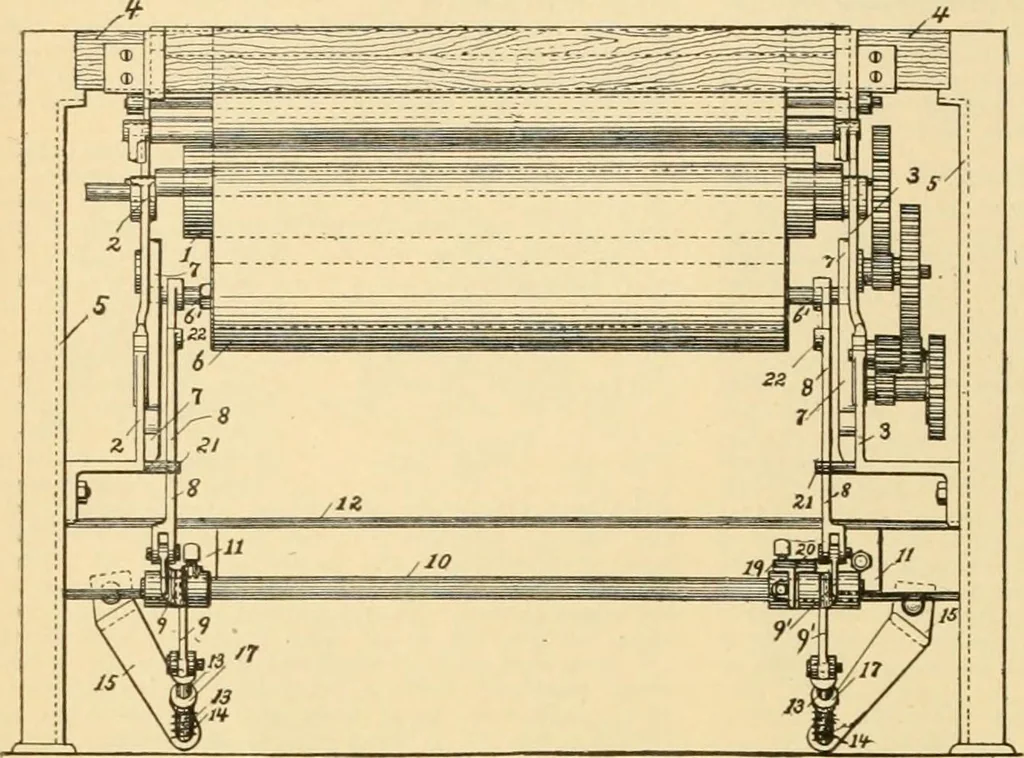

ands 11, secured to the cross girth 12of the loom. The other arm of each angle lever 9and 9 is connected to a rod 13, provided with anadjustable spring 14, and loosely mounted at itsinner end in a stand 15, attached to the back girth16 of.the loom to have a sliding motion therein. Thesprings 14… … and pressed against the take up roll 1 through theangle levers 9 and 9, and vertically moving support 8.The shaft 10 has fast upon it at the right hand enda foot treadle 19, projecting toward the front of theloom. Beside the treadle 19 and integral with theangle lever 9. which is loosely mounted on…
Textile fabrics · Textile industry · Textile machinery
