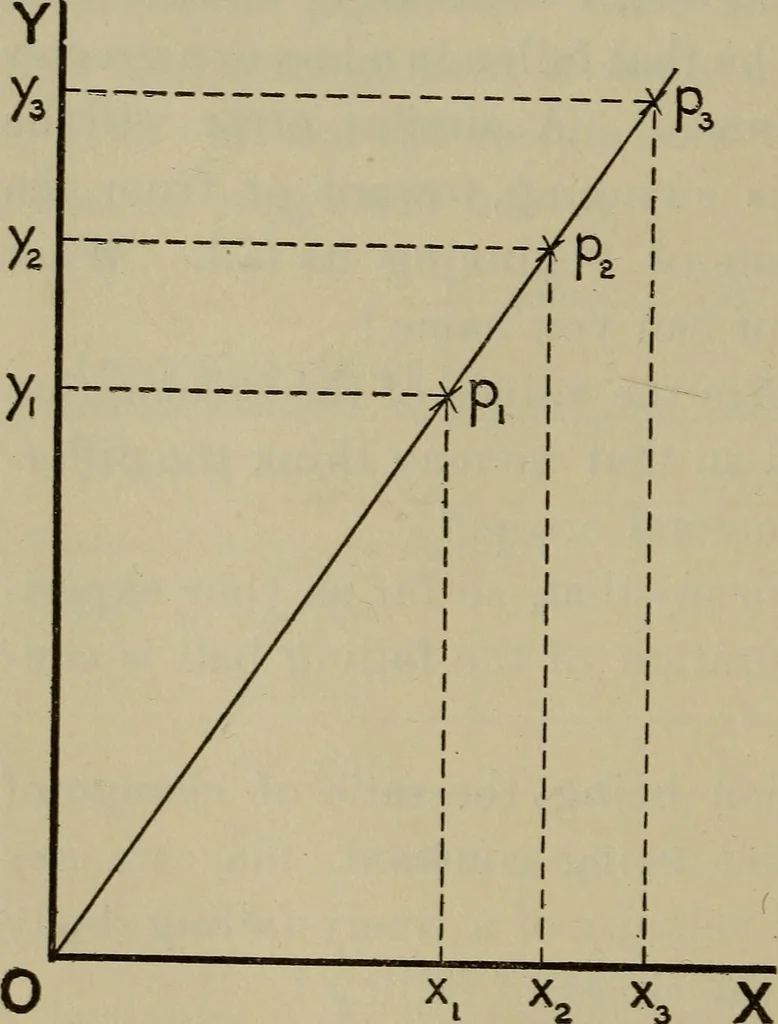

rcise Number 3 GRAPHICAL, REPRESENTATION OF ACCELERATEDMOTION. VELOCITY-TIME References M & T 4, 5 The Purpose of this exercise is to find out what kind of diagramwill represent theway in which thevelocity varies withthe time in thecase of the fallingbody of Exercise 2.Operations. —Near the… … MECHANICS OF SOLIDS 9 heavy lines, OX horizontal, and OYvertical. La-bel OX Axis of Abscissas. Times, and OYAxis of Ordinates. Velocities. Below OX writeScale, 1 cm. = 0.15 sec, and at the left of OYwrite Velocities. Scale 1 cm. = lOO^;. (5) The times are to be represented by distancesfrom OY…
