Labor-saving looms : a brief treatise on plain weaving and the recent improvements in that line, with special reference to the Northrop looms manufactured by Draper Company, Hopedale, Mass., U.S.A (1905)
Draper, George Otis, 1867-1923, Draper Company · [Hopedale, Mass. : Draper Company] · leaf 89

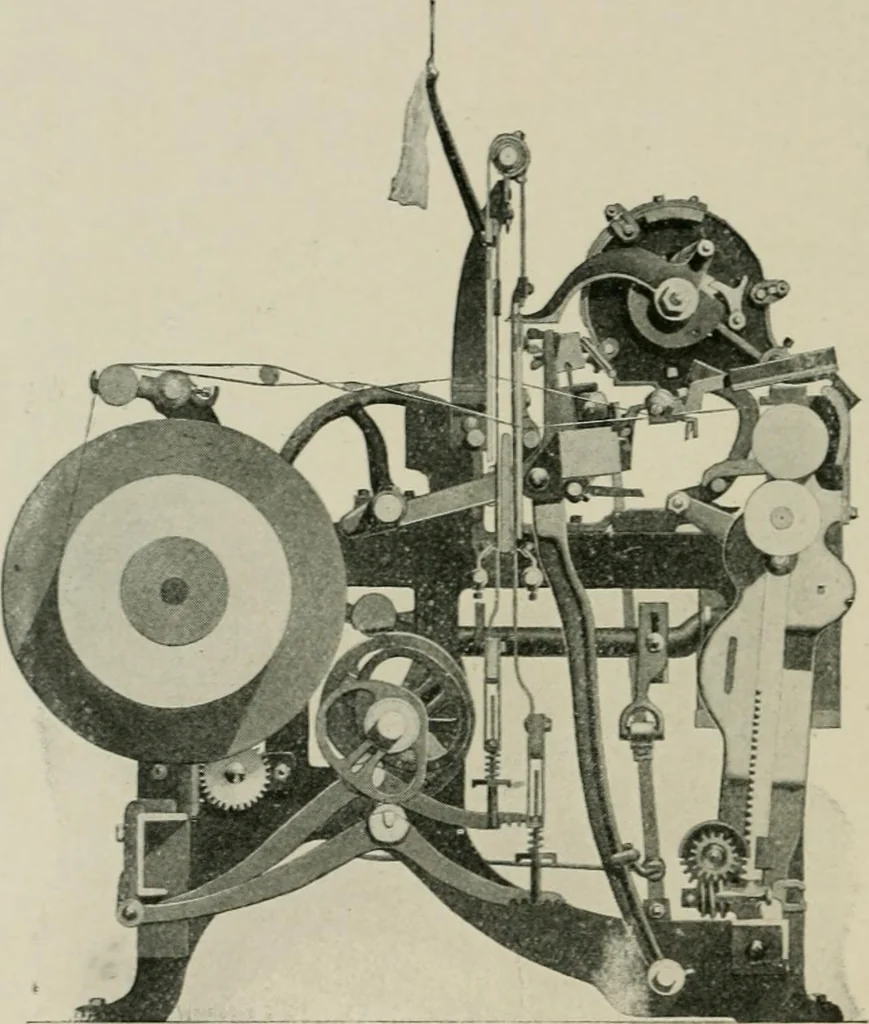

to dragout the length of filling cut by the extra thread cutter. While the cut shows the feeler on a two-harness loom, it ismore customary to use this device on multiple harness weaving. The feeler shown is one of the earlier constructions. We lnoknl at the Draper loom-. Which are running… … CROSS-SECTION OF E MODEL STEEL HARNESS LOOM, NO. 1 HOPPER. (Shuttle positioning device is different from that in perspec-tive view of E model, and hopper is for cops instead of bobbin. Pulley- are at the left hand on this loom.) This cut gives a good detail of the cloth winding device onour high…
Looms · Weaving
