Labor-saving looms : a brief treatise on plain weaving and the recent improvements in that line, with special reference to the Northrup looms manufactured by Draper company, Hopedale, Mass., U. S. A. (1904)
Draper, George Otis, 1867-1923 · Milford, Mass. : Printed by Cook & sons · leaf 109

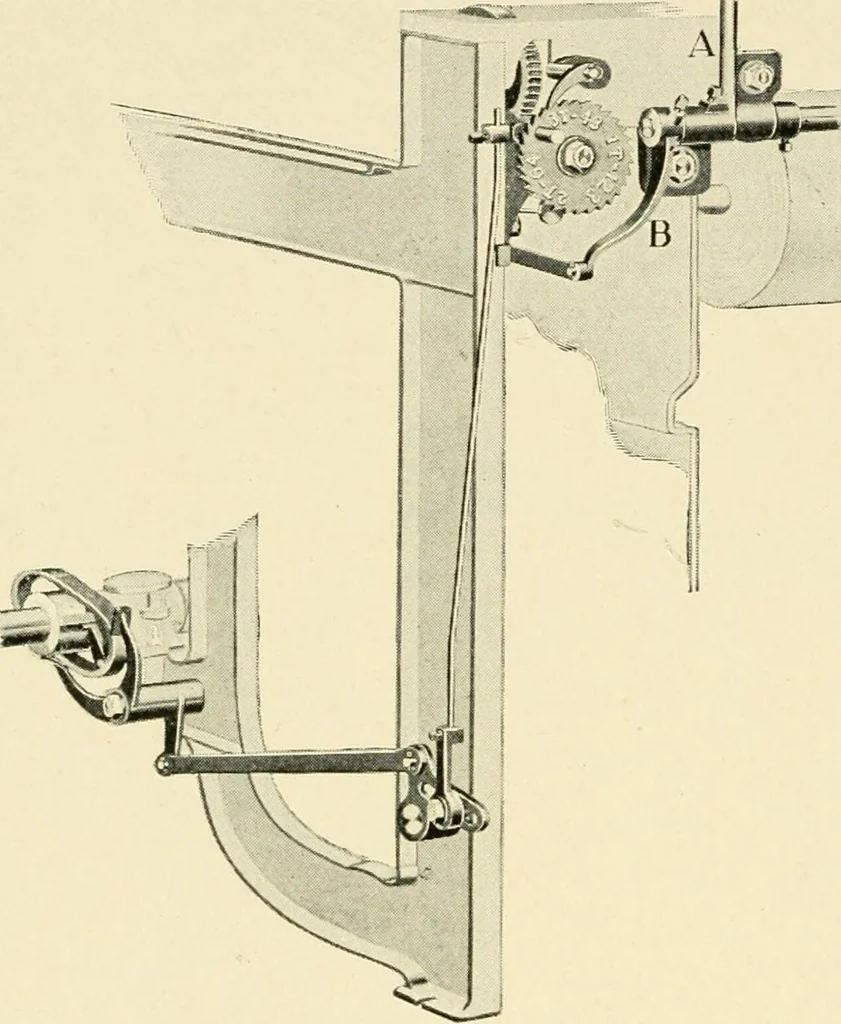

B MODEL LOOM TAKE-UP. This take-up derives its motion from the rocking^ of thelav-sword. It has a let-back go^erned from the fork-slide. Cutalso illustrates the weft-hammer and shipper knock-off. … J MODEL TAKE-UP. This take-up is extremely simple, as will be seen by thecut. It is operated by a cam on the lower loom shaft and sotimed that it w^ill not take up unless the shuttle is picked. Thispreyents the thin places which are sometimes formed on commonand old Northrop looms if the weayer…
