Labor-saving looms : a brief treatise on plain weaving and the recent improvements in that line, with special reference to the Northrup looms manufactured by Draper company, Hopedale, Mass., U. S. A. (1904)

Draper, George Otis, 1867-1923 · Milford, Mass. : Printed by Cook & sons · leaf 63

An illustration from Labor-saving looms : a brief treatise on plain weaving and the recent improvements in that line, with special reference to the Northrup looms manufactured by Draper company, Hopedale, Mass., U. S. A., 1904, leaf 63

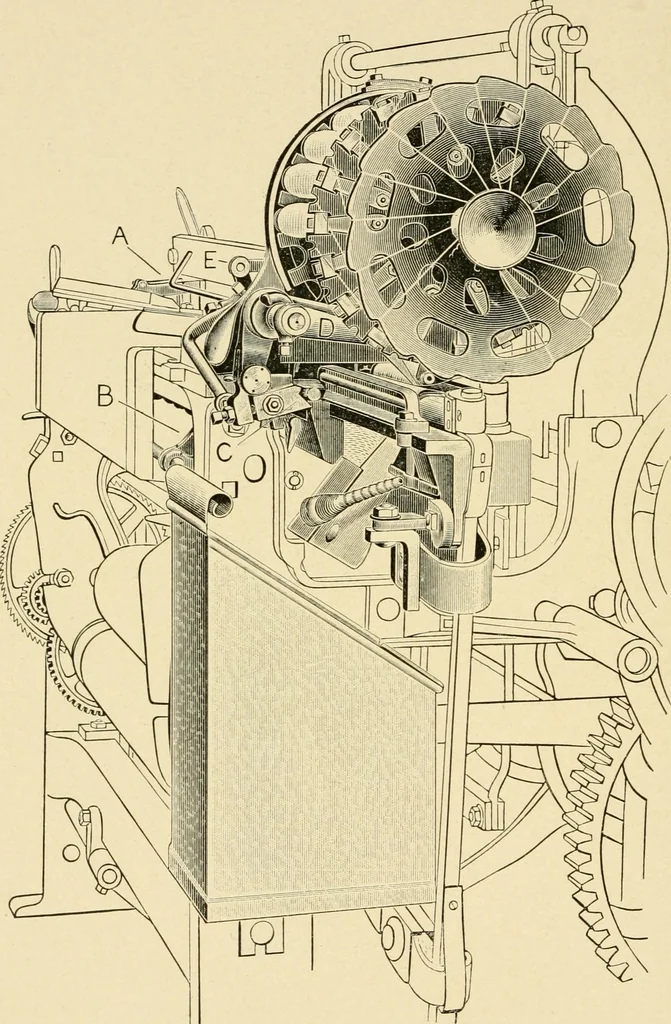

DETAIL (3F COXXECTION Between the filling fork which detects the absence of filling and a No. i cop hopper or magazine. 5^ … ILLUSTRATION OF HOPPER ACTION ON B MODEL LOOM. S1 A is the filling-fork which detects absence of filling, andthrough the usual catch and \ibrator gives action to rod B con-trolling latch C. When latch is raised it will be in contact with a bunter onthe lay, thus forcibly depressing the transferrer…
