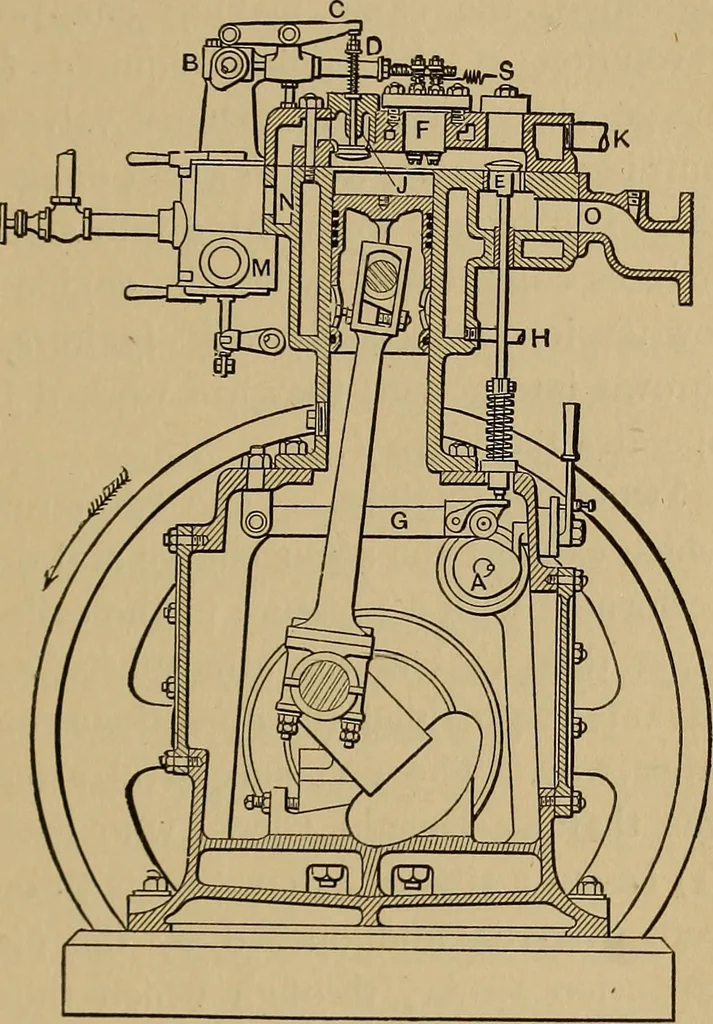

er, so that nocross-head is needed; a common arrangement for all except massive gas-engines.The cylinder barrel and head are water-jacketed, the inletand exits being at H and K. Gas and air enter the mixer-chamber M by separate pipes (not shown) and pass by Nto the inlet-valve 7; the engine is… … Fig. 78. 338 INTERNAL-COMBUSTION ENGINES that can be moved by hand; this sleeve may be set by handto give any desired mixture, and the proportion of the inletareas for gas and air having been once set, the relativeareas remain unchanged, while the governor adjusts thepiston-valve to give the amount…
