Lessons in practical electricity; principles, experiments, and arithmetical problems, an elementary text-book (1903)
Swoope, Coates Walton. [from old catalog] · New York, D. Van Nostrand company · leaf 149

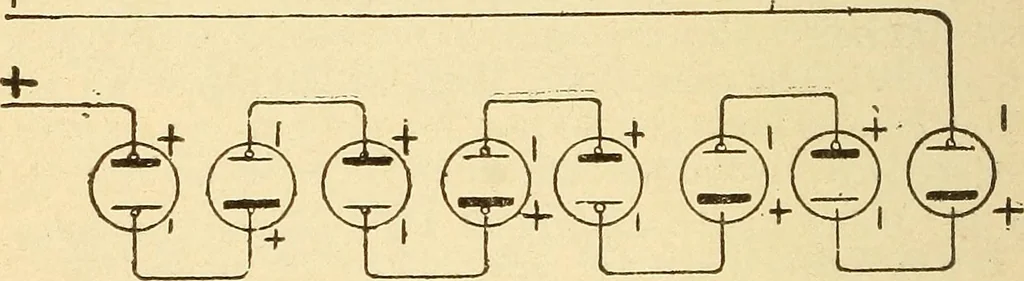

the current flowing through the external cir-cuit must pass through each cell so connected, Fig. Ill,requiring, therefore, a certain fraction of the total E. M. F. toovercome the resistance of each cell. To FIND THE TOTAL INTERNAL RESISTANCE OF A NUMBEROF SIMILAR CELLS CONNECTED IN SERIES :… … Fig. 111.—Eight Cells Connected in Series for Pressure.The pressure is eight times that of one cell, as is also the total internal resistance. Prob. 42 : Ten Daniell cells, with an internal resistance of 2 ohmseach, are connected in series. What is the total internal resistance ?By Formula (36)…
