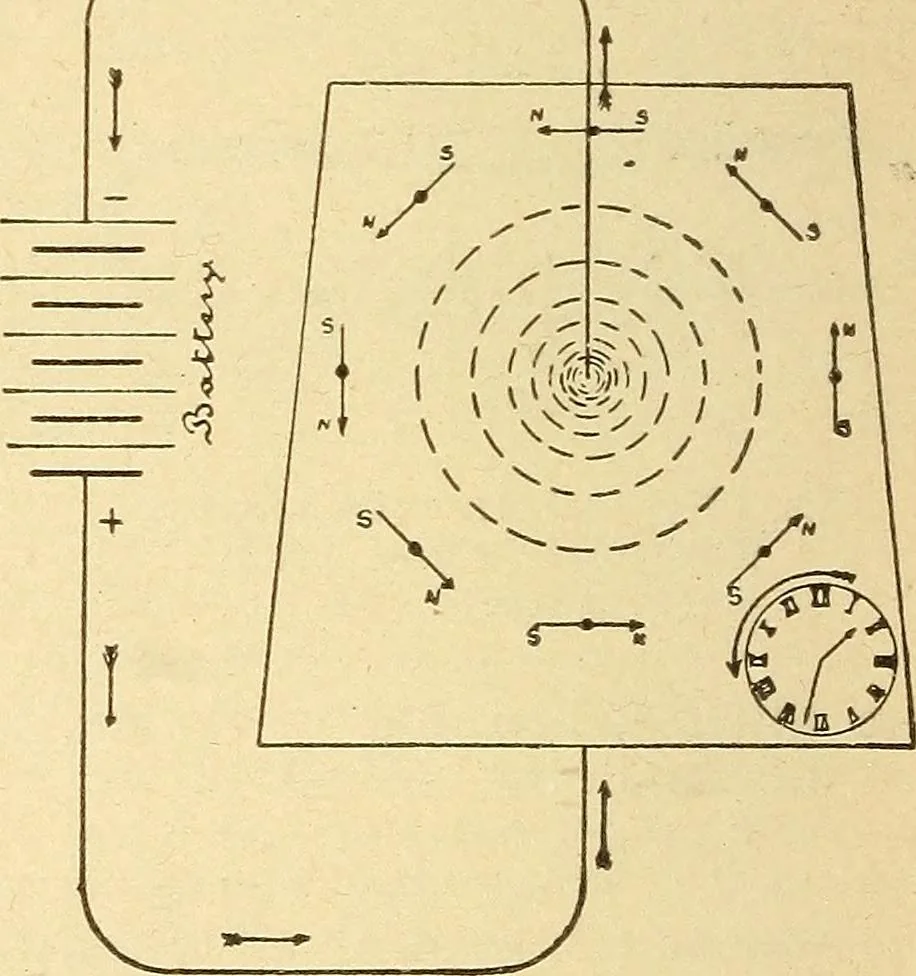

cular lines of force, or mag-netic whi?is, do not mergeinto, cross, or cut eachother, but complete their cir-cuits independently aroundthe wire. 167. Direction of the Fis-13°-Lines of Force of a Q+vair»Vi+ fiiT>vQTi+ rtQvr,Tr The compass needles on the horizontal card•OTdTcilgnu UUrreill-Ocirry-… … -Current Flowing Up-Anti-Clockwise. -Whirls ELECTROMA GXETISM. 155 around the wire in the form of a circle, Fig. 130, of such diameterthat all the needles point nearly N and S. Pass a strong currentthrough the wire from a batteryso that the current flows up, or to-ward you as you look down upon the…
