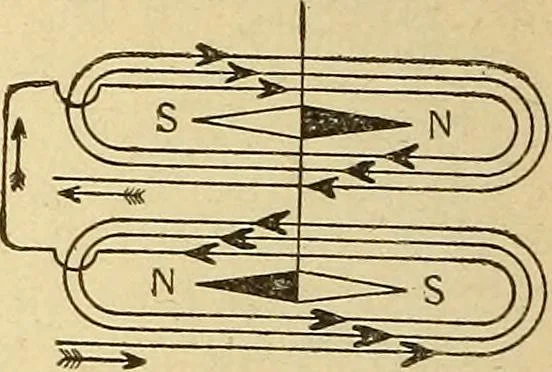

aller current will deflect it than whenFig. 166.— Single Coil Mirror-Reflecting or .-, ^„ ii . A- ,. c ■, , Direct Scale Astatic Galvanometer. the earth s directive force has to be overcome. This principle isused in increasing the sensibility of galvanometers. In Fig. 165,the galvanometer coil… … Fig. 167.—Connections of Double Coil Astatic Galvanometer. arranged so that the deflections may be read from the circular scale,or the instrument may be used as a mirror-reflecting galvanometer, bymeans of the small mirror attached to th. vertical fibre suspension.A controlling magnet is also…
