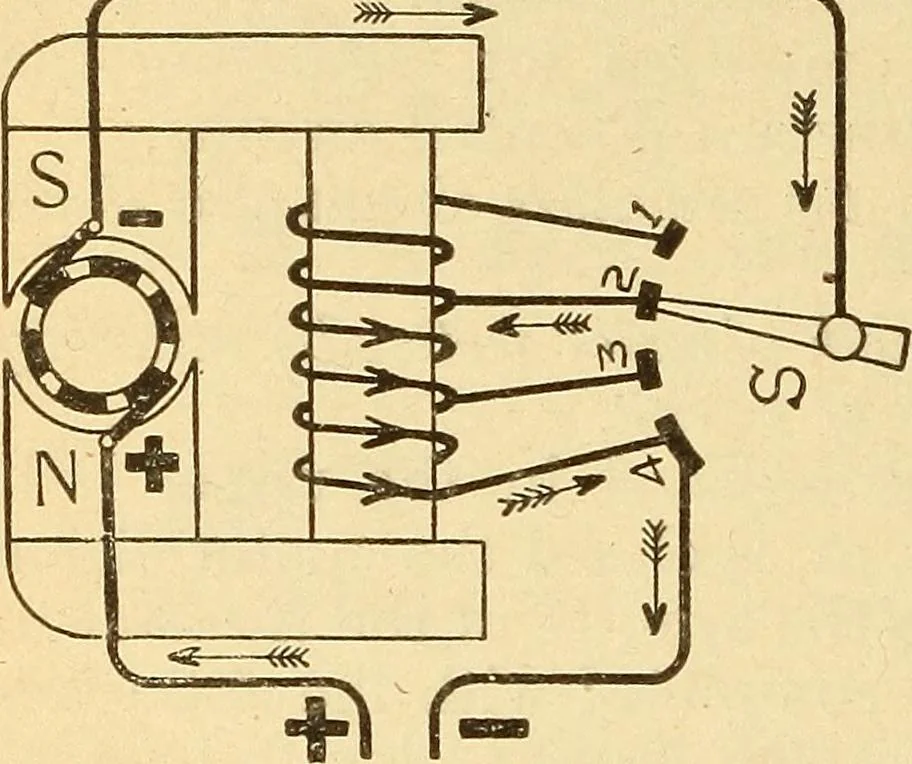

ield willthen have its maximumstrength and will be de-creased as the arm is movedto point 2, 3, etc. Increasingthe field strength of a motordecreases its speed, while de-creasing the field strength in-creases the speed* This isshown by the following ex-ample. Suppose a street car to be running on a… … Fig. 377.—Speed Regulation of aSeries Motor. By Formula (103) C = E- 500 — 400 = 100 amperes. The power developed by the motor will be, Bv Formula (105) W= @ X C = 400 X 100 = 40000 watts (53.6H. P.). Suppose it is desired to run the car more slowly. Increasethe field strength, say 10 per cent, by…
