Lessons in practical electricity; principles, experiments, and arithmetical problems, an elementary text-book (1903)
Swoope, Coates Walton. [from old catalog] · New York, D. Van Nostrand company · leaf 86

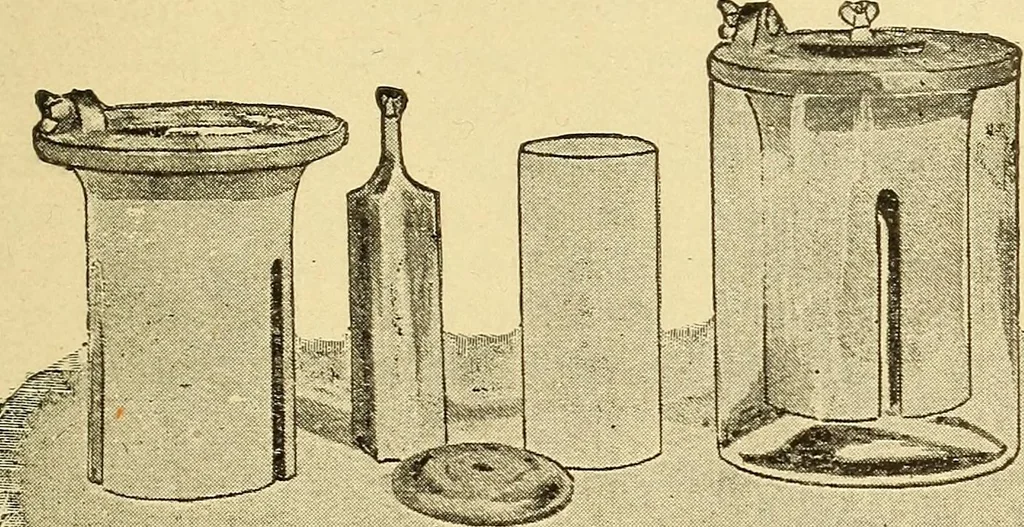

Fig. 80.—Fuller Cell. Zinc in dilute H2S04 in porous cup, carbon in a bichromate solution. Another form BATTERIES. 67 85. Partz Acid Gravity Cell.—In the Partz acid gravityform of cell, Fig. 81-A, the electrolyte which surroundsthe zinc is either magnesium sulphate or common salt. … Fig. 81.—Fuller Cell.Zinc in porous cup with mercury and dilute H2S04, carbon in a bichromate solution. The depolarizer is a bichromate solution which surroundsthe perforated carbon plate located in the bottom ofthe jar. A vertical carbon rod fitssnugly into the tapered hole in thecarbon plate, and…
Electricity · Magnetism
