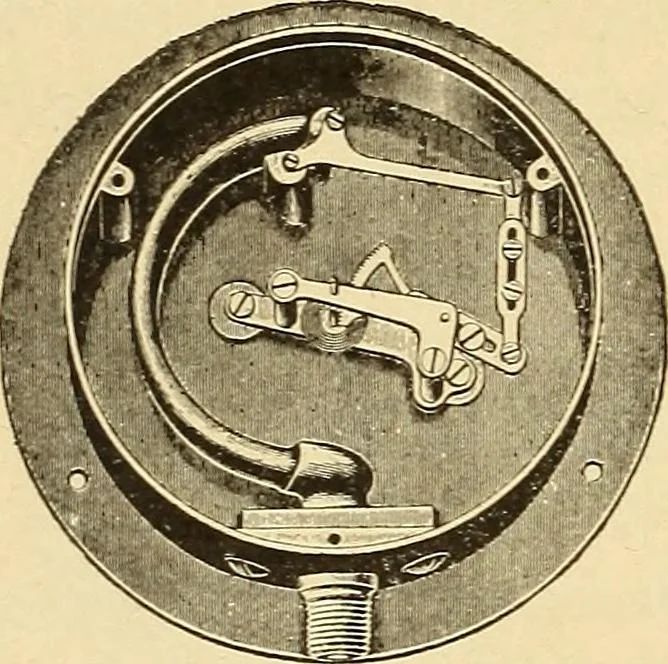

Fig. 8. Fio. 0. Crosby Locomotive Pressure Gauge. mechanism, which transmits the free movementsof these4 Bourdon tube springs to the index, has beendesigned with great care, and sd that it may beeasily renewed in case of repairs. These gauges for locomotive use are graduated toany pressure not… … Fig. 10.Crosby Single Tube Gauge. Fig. 10 shows the internalarrangement of a single Bour-don tube spring Crosby gauge.This gauge is designed tomeet the demand for a cheapergauge than the more accuratedouble tube form before illus-trated. The thermostatic waterback gauge shown withsingle and double…
