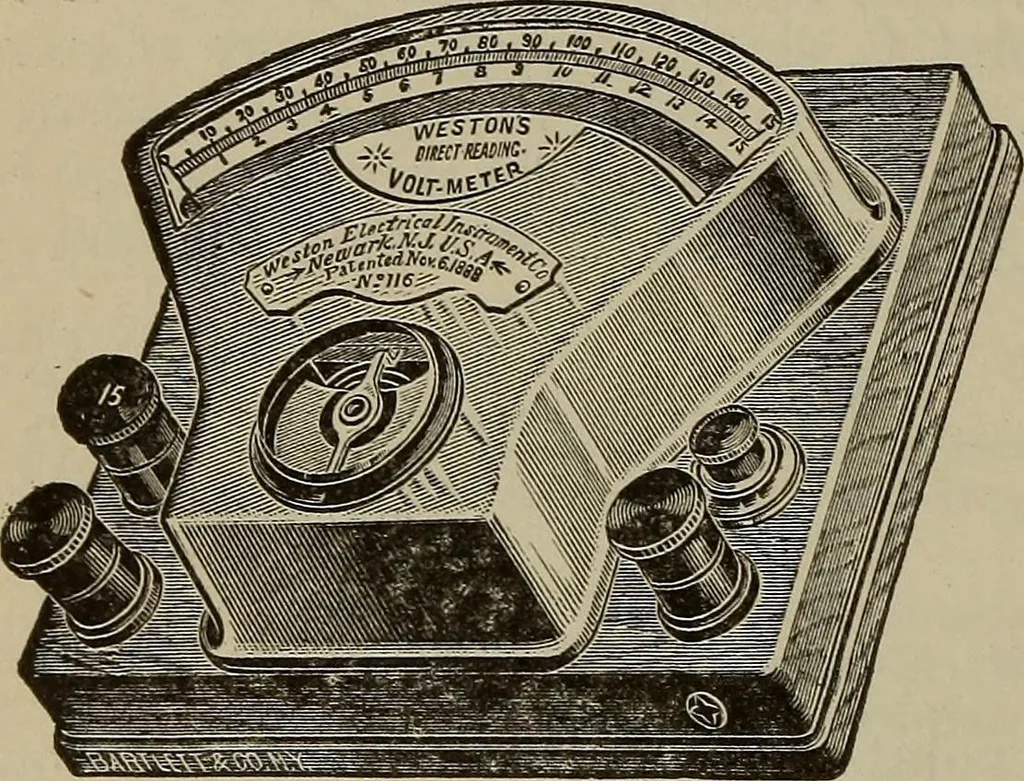

tin the circuit, or the current through the voltmeter, but thedifference in pressure between the voltmeter terminals. Themovement of its magnetic system, of course, depends uponthe current flowing through the voltmeter, but the scale iscalibrated by applying known E. M. F.s to its terminals and.… … Fig. 212.—Weston Double Scale Yoltmeter, shunt, and the instrument measuies the current. A voltmetermeasures the current flowing through it, but the calibration isin terms of the pressure causing this current to flow. See Exp 57,11182. 234. Construction of Voltmeters.—The same principlesemployed in…
