Inside Out Library
Lessons in practical electricity; principles, experiments, and arithmetical problems, an elementary text-book (1902)
Swoope, Coates Walton. [from old catalog] · New York, D. Van Nostrand company · leaf 354

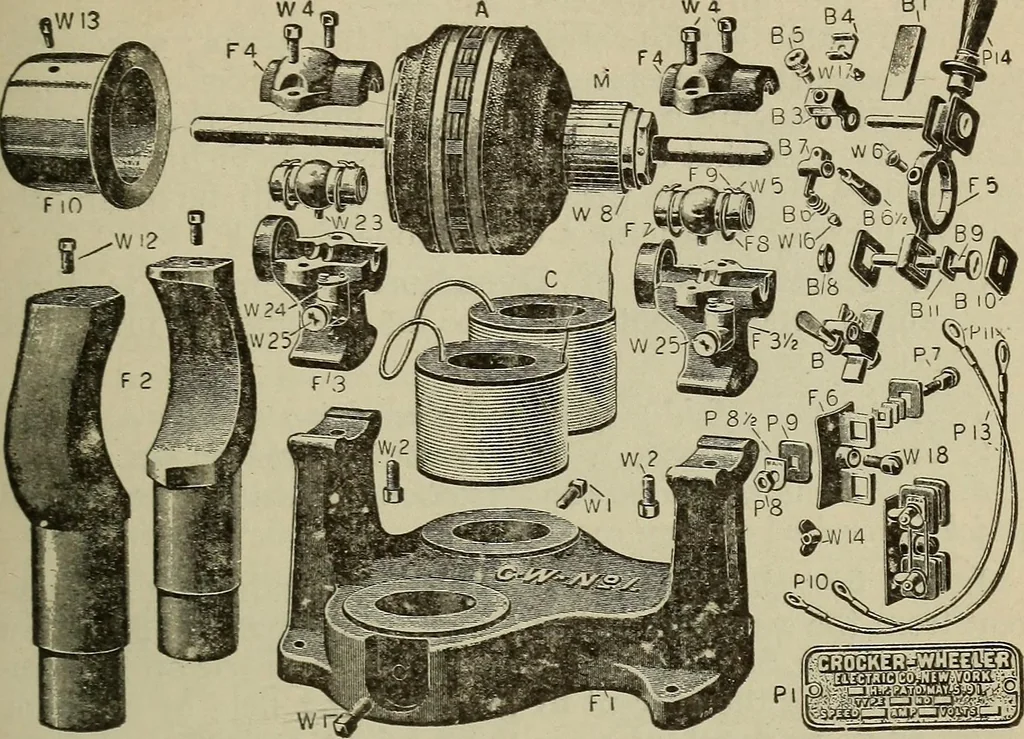

Fig. 303.—Bipolar Dynamo or Motor. DYNAMO ELECTRIC MACHINES. 335 ^^ Irf … Fig. 304.—Dissected Bipolar Dynamo. LIST OF PARTS. F-Frame A-Armature. C-Commutator. C-Field coil complete. ^^*- B-Brush. W-Screws. P-Pan. FRAME-F. Base, Field magnet, Pillow blk., lower part,Pillow l)lk., lower part comm. end,Pillow blk., cap,Rocker arm,Binding post saddle.Journal box,Oil…Electricity · Magnetism
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
More pictures from Lessons in practical electricity; principles, experiments, and arithmetical problems, an elementary text-book
More like this
