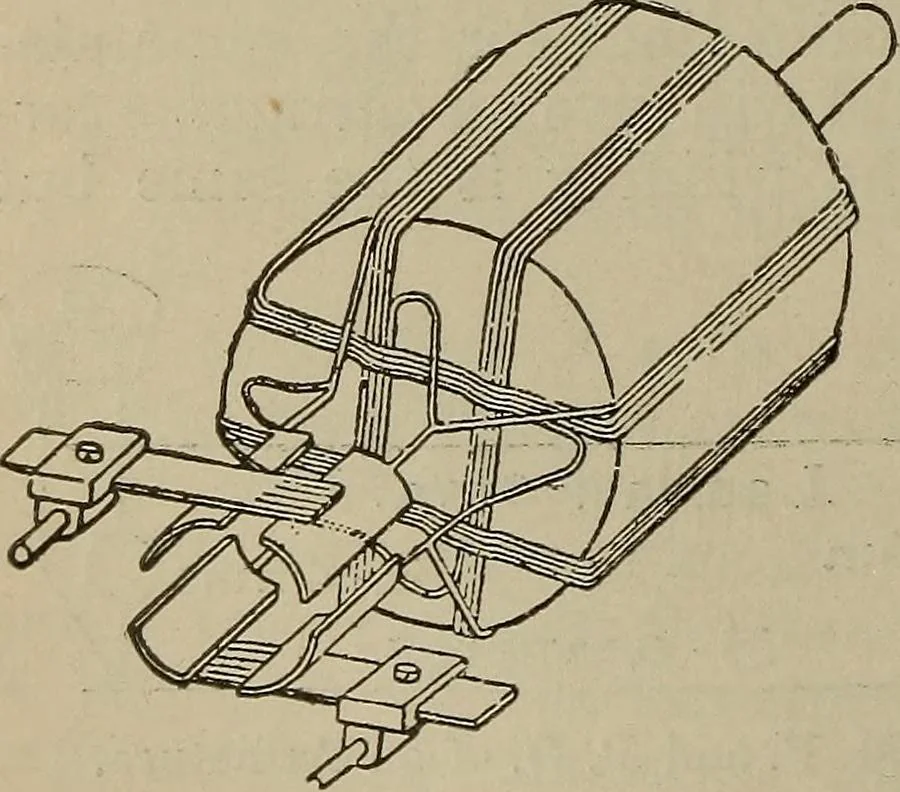

com-mutator, suitable for a bipolarfield. In practice a greatmany coils are wound uponthe core covering its entirearea, the commutator sectionsincreasing with the sub-division of the armature coils.The induced E. M. F. in thatpart of a coil under one pole isin the opposite direction tothat in the… … Fig. 330. -Four-Coil Siemens DrumArmature. DYNAMO ELECTRIC MACHINES. 35l the induced E. M. F. is that generated by one-half ofthe total conductors upon the core, and each half of the wind-ings deliver one-half of the total current flowing to the ex-ternal circuit. 329. Advantages of Drum and Ring…
