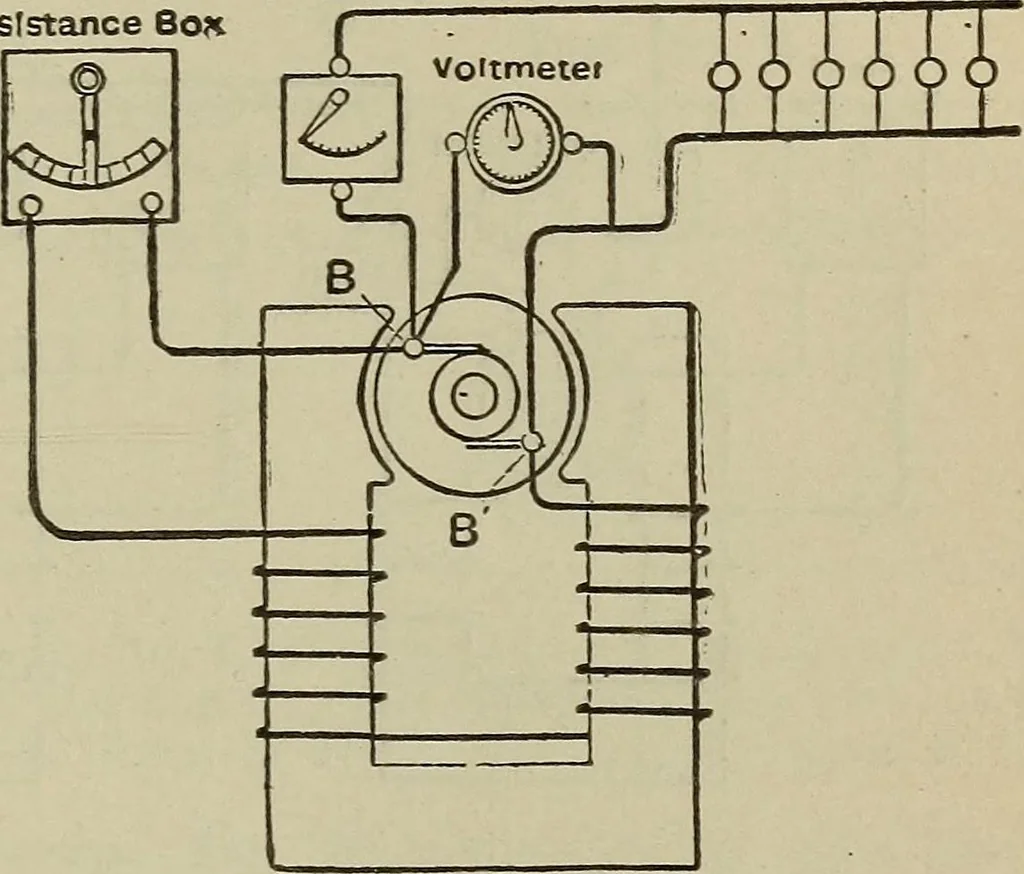

e current through the fields and r equals thearmature resistance. A voltmeter, therefore, placed acrossthe brushes of any self-exciting dynamo indicates the poten-tial difference ratherthan the E. M. F.If the field rheostatis adjusted for anyparticular voltagewith the main cir-cuit open, say… … Fig. 363.—Regulating the E. M. F. at the Brushesof a Shunt dynamo by the Shunt Field Rheostat. causes: first, there is an increased drop in the armature dueto the additional current flowing through it, which lowers thepotential difference at the brushes ; second^ the potentialdifference at the…
