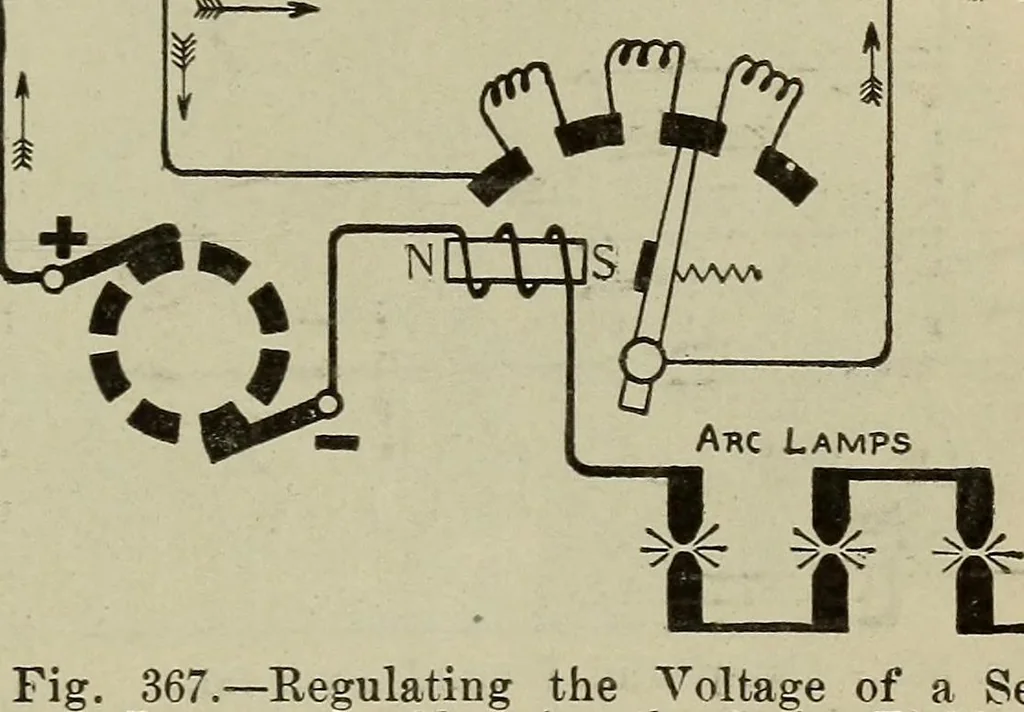

ht dynamo. In the second method an ad-justable rheostat is placed in shunt with the series field mag-nets, Figs. 366, 367, and the main current divides in propor-tion to the resistances of the two circuits. The arm of therheostat is auto- ^^^,^^ P^^^^ matically moved bya solenoid and… … 367.—Regulating the Voltage of a SeriesDynamo by Shunting the Series Field. sistance, thereby shunting more current from the field circuit,and preventing the rise of E. M. F. When the external resist-ance is increased the resistance in the rheostat is automati-cally increased and more current flows…
