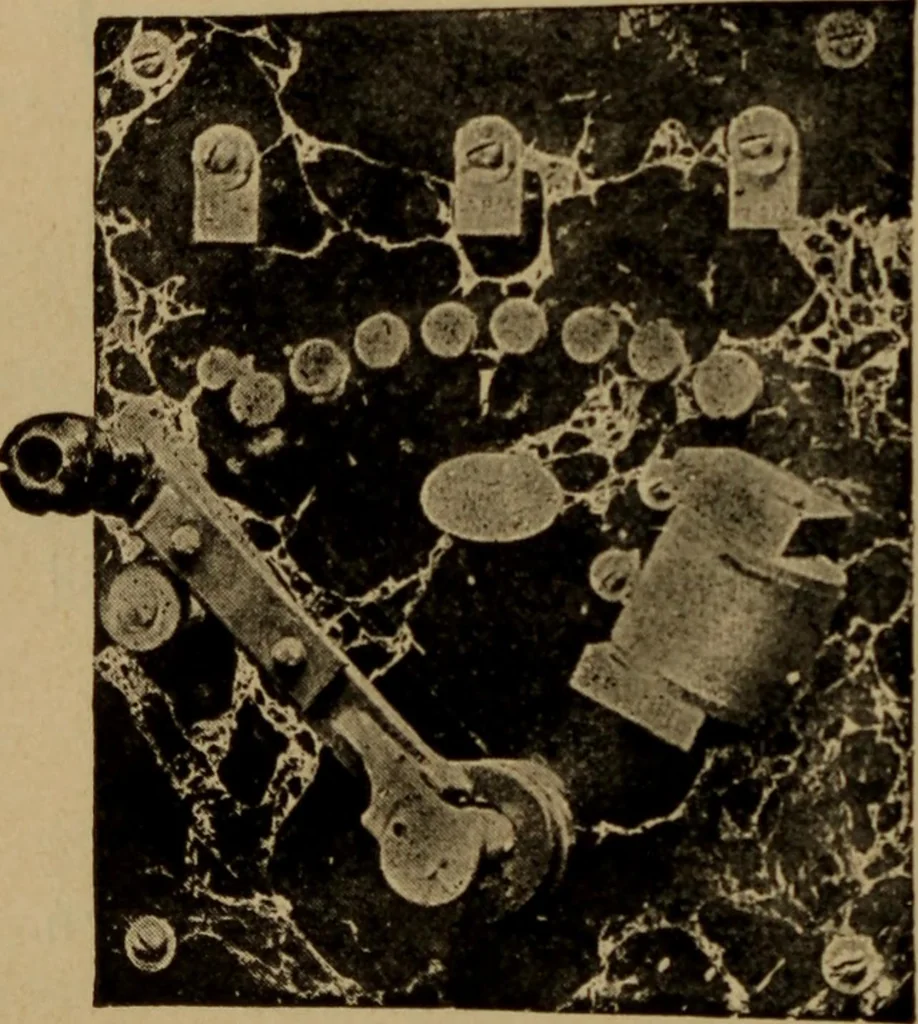

heostat is to absorb electricalenergy, and this energy, which appears as heat, is wasted in-stead of peiforming any useful work. A rheostat may beconstructed of coils of iron wire, iron plates or strips; car-Don, either pulverized in tubes or in the form of solid rodsor discs; German silver,… … Fig. 123.—Commercial Type ofRheostat. CIRCUITS AND THEIR RESISTANCE. 149 4^ If %,. X v \v o \ *o ^* V r ^ 3 ! 1 Fig. 124.—Commercial Rheostat. Diagram of connections of theresistance coils. regulating the current in commercial electric circuits no greatdegree of accuracy of the resistance coils is…
