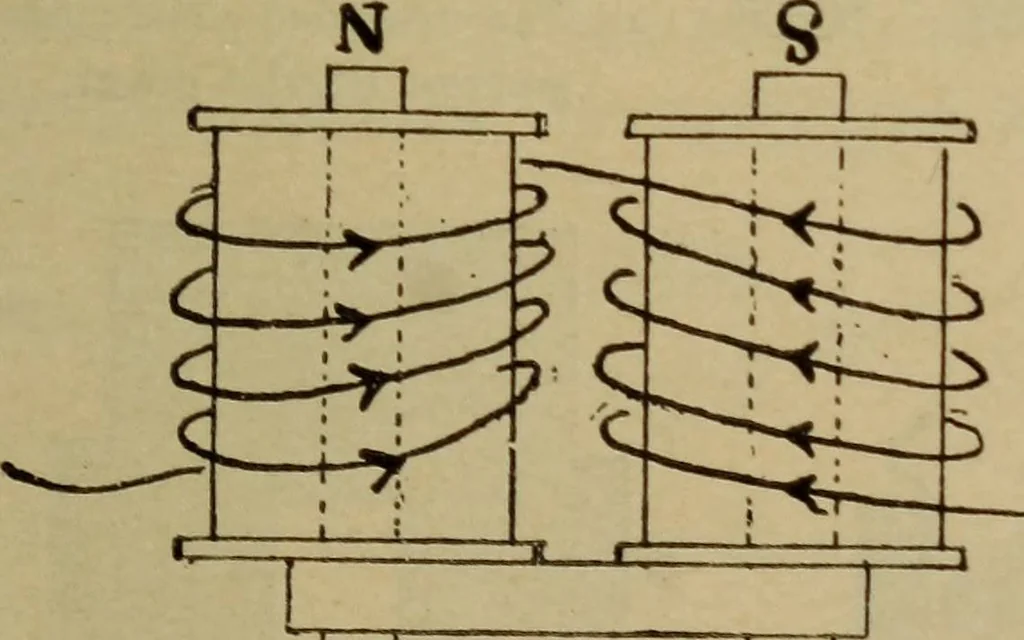

quite strong between thepoles of the electromagnet. In-stead of a forged horseshoe itmay be composed of threeparts, as in Fig. 180, where thetwo iron cores or limbs areconnected by an iron yoke ofequal cross section and secured by machine screws. Thedirection of current and resulting polarity are… … Fig. 180.—Direction of Current Around Horseshoe Magnet.
