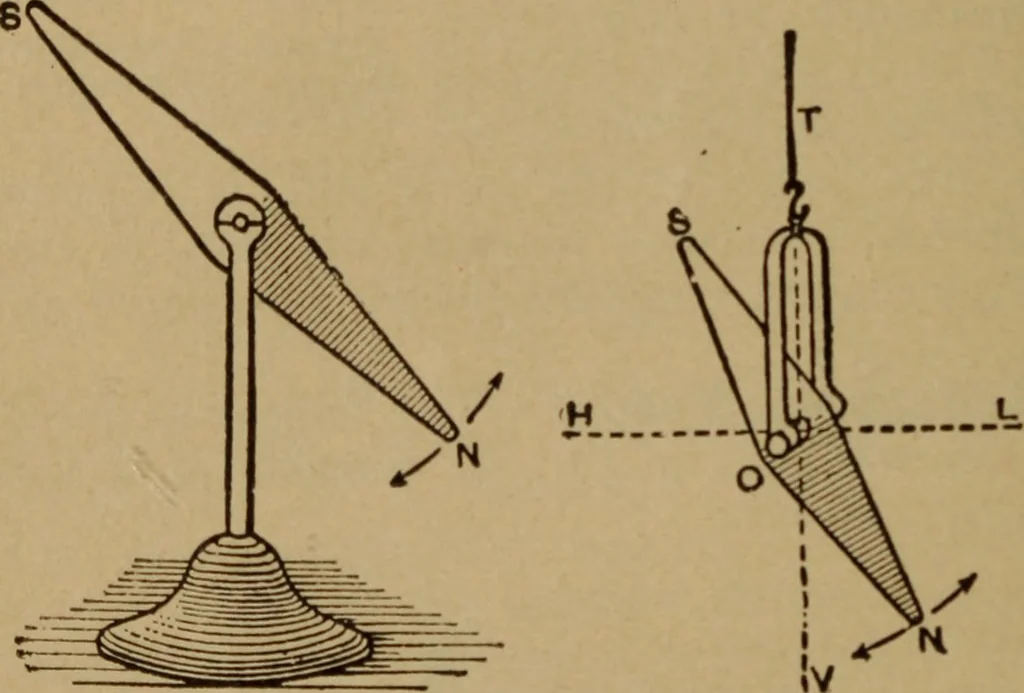

bar magnet. Sometimes the needleis suspended from a vertical support by a cocoon silkfibre, in which case it is much more sensitive, due to theelimination of the friction in the poised form. Both typesare much used commercially in electrical detecting andmeasuring instruments, as in the mariners… … o=f }=o Fig. 19.—Magnetic Dip Needle. Fig. 20.—Magnetic I >ii> Needle. centre of the lozenge at right angles to it, and is held in posi-tion by brass V centres, or agate bearings, as shown in Figs.19 and 20. It is thus free to turn vertically. In some typesthe cradle holding the horizontal…
