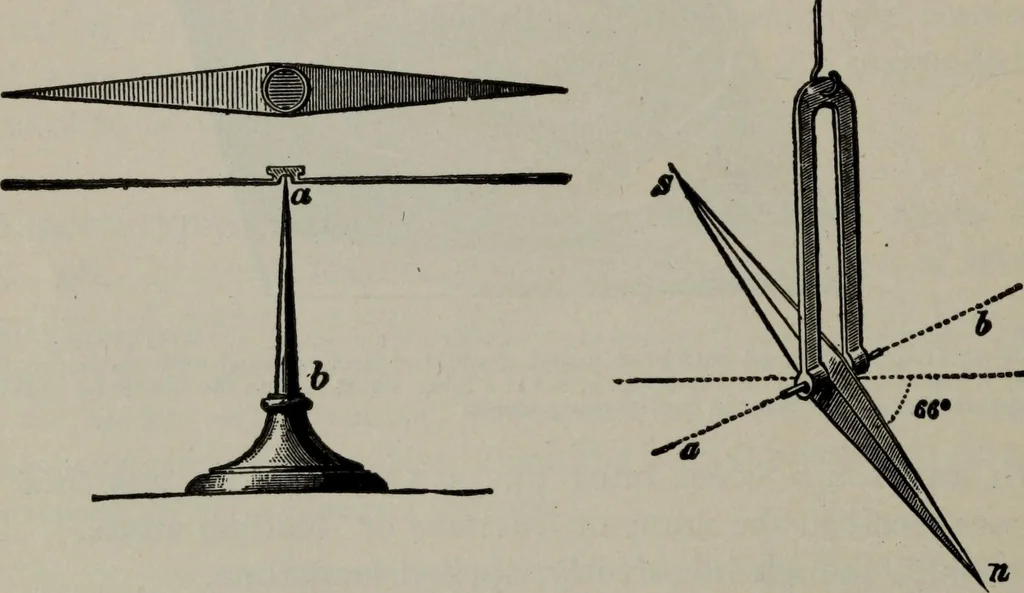

Figs. 94 to 96. — Simple bar magnet and horse shoe magnet with keeper. These are knownas permanent magnets in distinction from electro-magnets. The horse shoe magnet willattract more than the bar magnet because both poles act together. A piece of soft iron,or keeper is placed across the ends of a… … Figs. 97 and 98.—Horizontal magnetic needle, and magnetic dip needle. A magneticneedle consists of a small bar magnet, supported upon a pivot or suspended so that it isfree to turn in a horizontal or vertical plane. The form of magnetic needle illustrated infig. 97 is arranged to show the magnetic…
