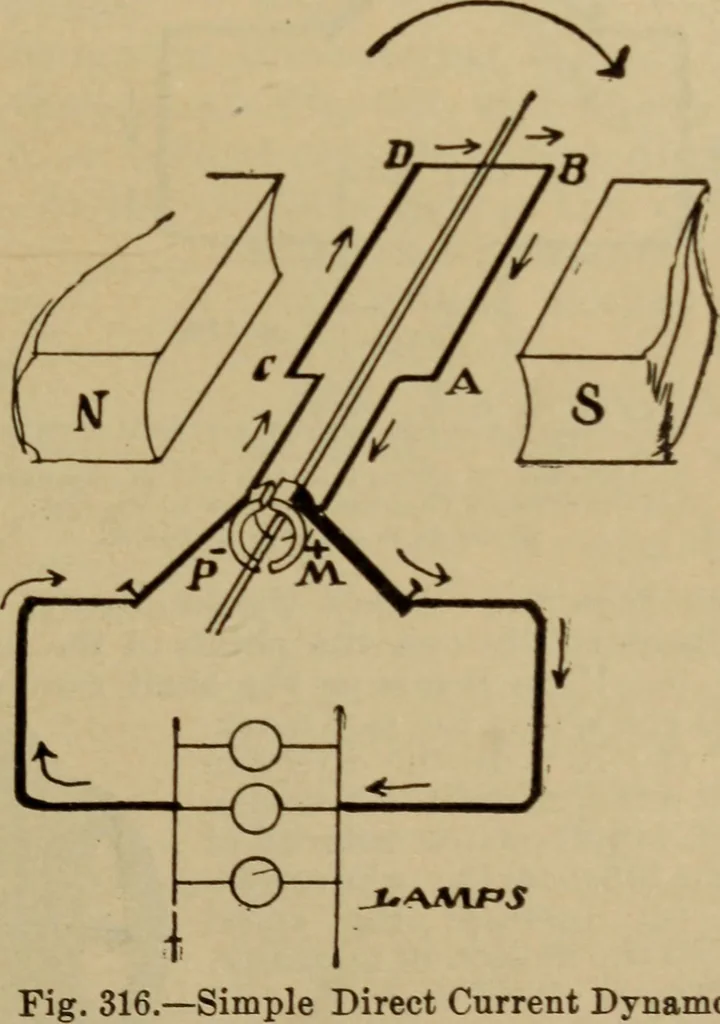

17, AB is now moving up past the N-pole and the di-rection of current in it is reversed. Its terminal, however, is not now in contact with brush J/, as before, but connected to brush P. Current flows to the external circuit from the brush M, which is still positive, though the current in the… … Simple Direct Current Dynamo. At the instant depicted in the revolutionbrush M is positive. 344 PRACTICAL ELECTRICITY. The act of commutation occurs at the instant when theWire, moving down past the S-pole, commences to move uppast the N-pole, either terminal of the coil being connected with one…
