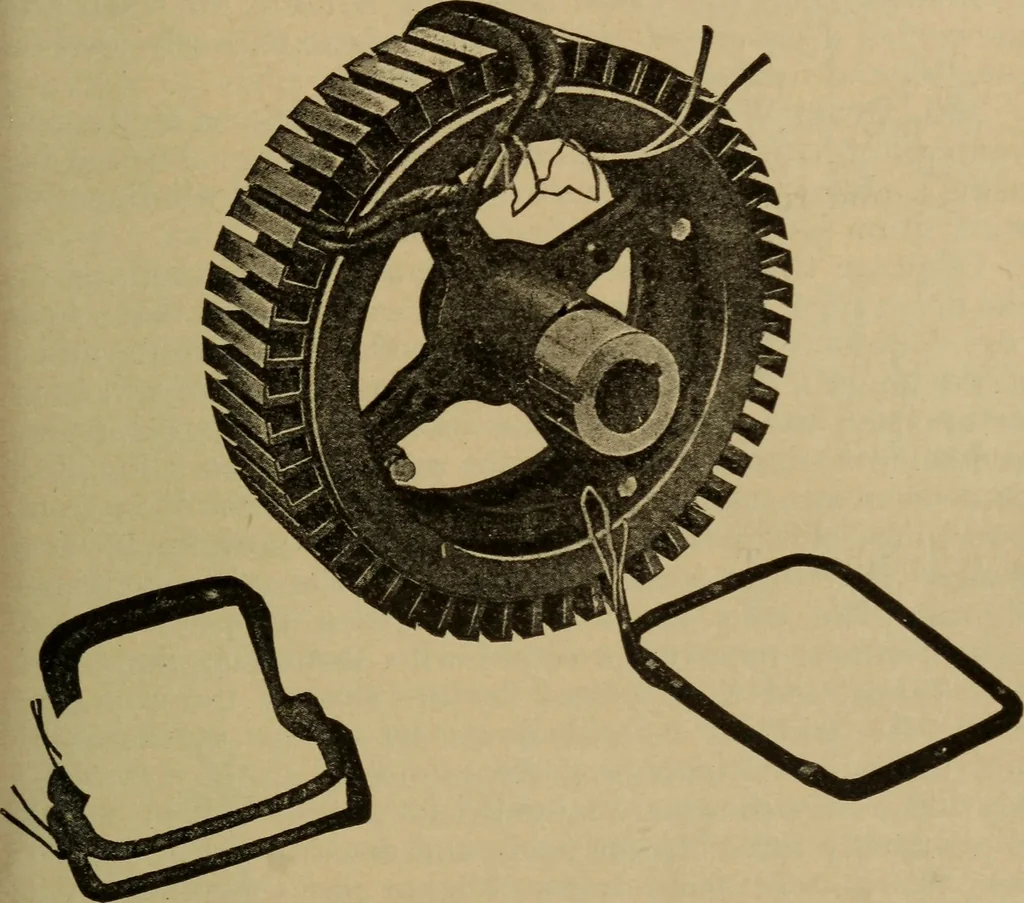

Fig. 330.- -Four-Coil Siemens DrumArmature. DYNAMO ELECTRIC MACHINES. 351 the induced E. M. F. is that generated by one-half ofthe total conductors upon the core, and each half of the wind-ings deliver one-half of the total current flowing to the ex-ternal circuit. 329. Advantages of Drum and Ring… … Fig. 331.—Tooth-Core Armature Body With Two Formed Coils in Position The wound and formed coils are also illustrated. The armatureis intended for a six-pole field. of force is that part located only on the periphery of the ringwhile that on the ends and inside of the ring cuts no lines offorce, and…
