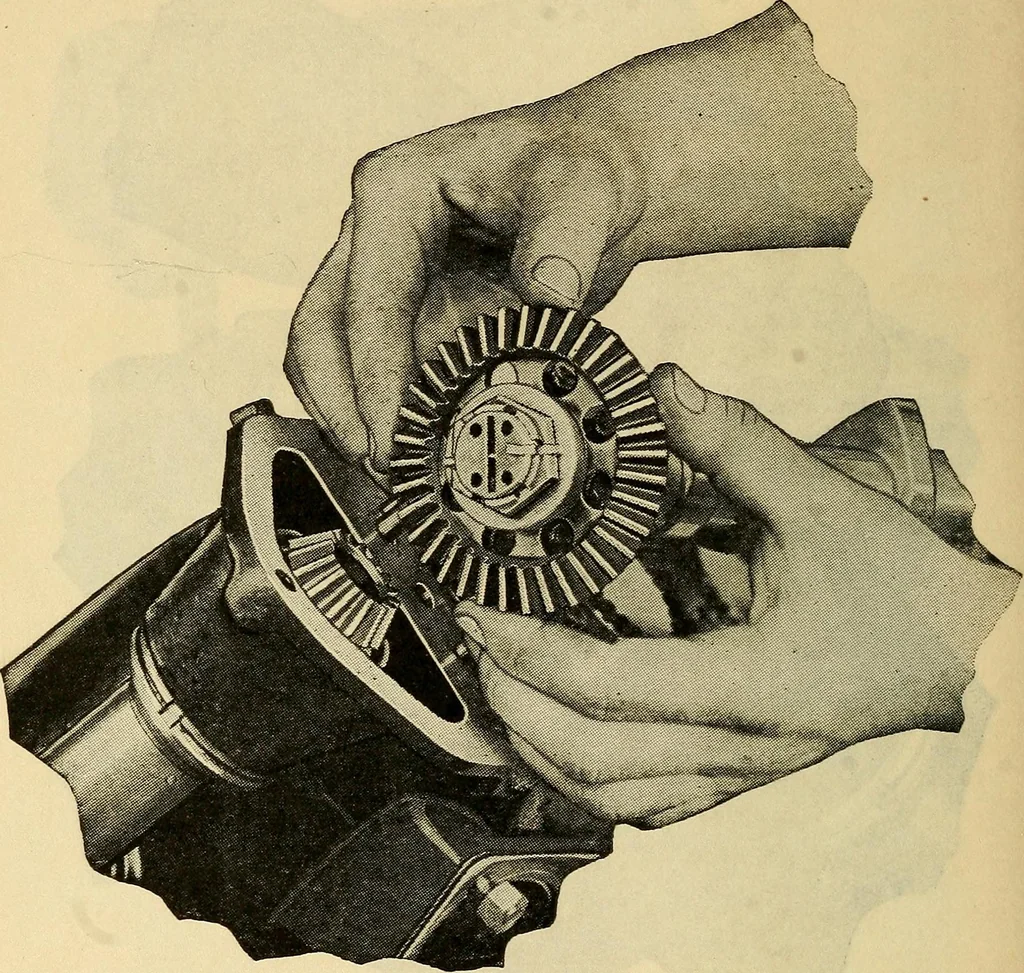

ertical shaftby a screw-driver type of joint, the tongue of which is solocated in respect to the teeth of the upper gear thata change of one-half a turn on the vertical shaft gives achange in timing equivalent to one-half a tooth ofthe camshaft gear. The camshaft itself is driven fromits gear by a… … Plate 32Adjusting the camshaft and camshaft gear with the vertical shaft gear. The timing can be corrected by making whicheverone of the following changes is necessary, after firstsetting the line on the timing disc marked E. C—1,0.1 and 4 Left at zero on the scale. If the timing is late advance,…
