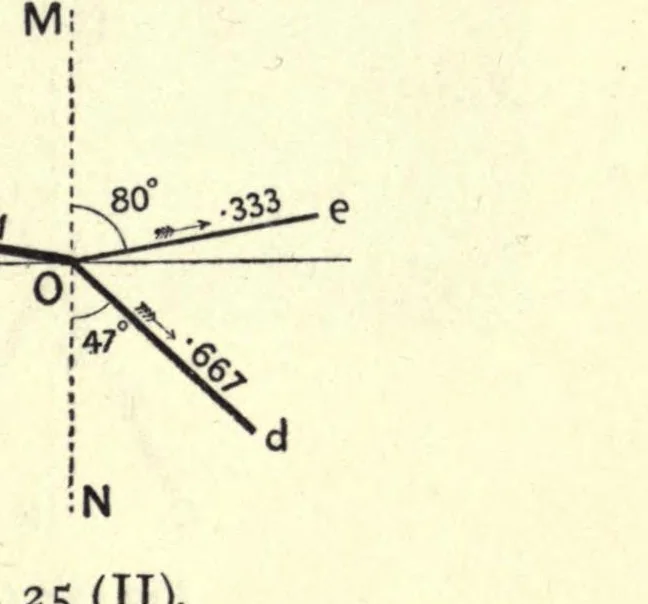

LIGHT AND WATER 64 obliquely (at an angle of 80°), a much larger portion (about one-third) escapes at the surface and is re- flected along Oe.1 Figs. 25 (III) and (IV) are similar to (I) and (II) respectively, the light now travelling in the direction of the arrows from a source below the surface,… … Fig. 25 (III). Fig. 25 (IV). If Figs. 25 (I) and (III) were placed one on the top of the other, the point O on the point O, and the line MN on the line MN, then the lines OE, OD, in each diagram would also coincide. A combination of the two diagrams would therefore represent the light coming to the…
Reflection (Optics) · Color · Water
