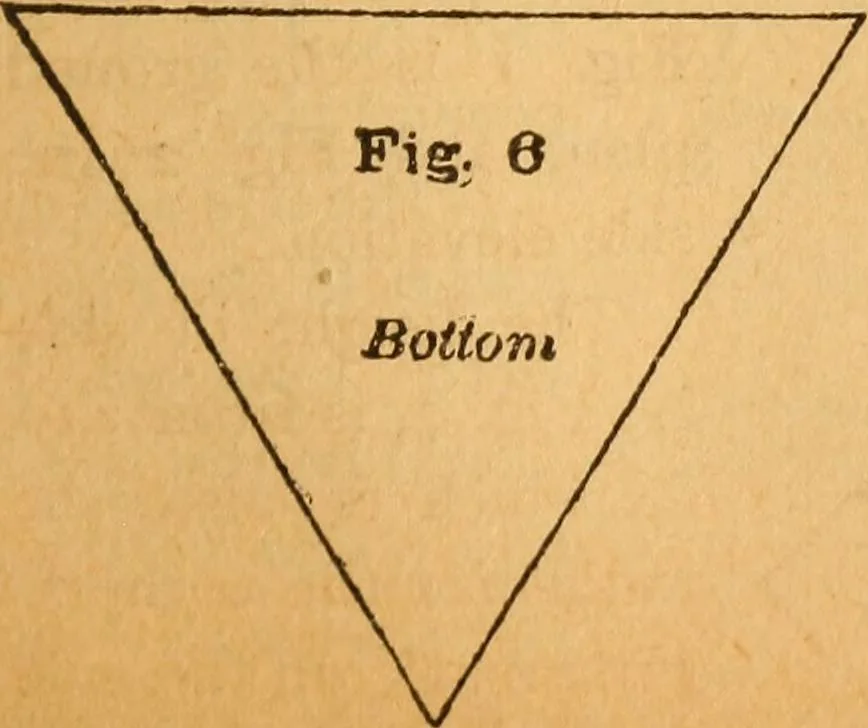

divided into four parts. It will be noticed that the four cor-ners in Fig. I will make D, and that the pattern for the fourcorners {a b A, Fig. 3) are equal to C, Fig. 5. As each corner of Fig. iis one-fourth of a cone, sothe pattern of each corner,Fig. 4, is one-fourth of thepattern C, required to… … 378 sides will be the same size as required to make the square dishonly the pattern C, Fig.5, will be required to bedivided into three partgfor each corner of thetriangle. Fig. 6 is aground plan of bottomof dish. We willcut thispattern in one piece bymarking off one of therides, and then…
