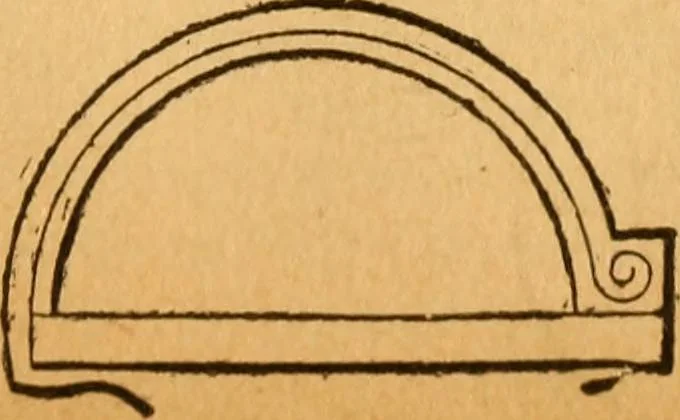

. 8, so as to usethe same pattern. B, Fig. 10, showing side viewand radius of large and small ; . circle. Fig. 10, C, giving the pattern for one-half of A, Fig. 10. To have the drawings appear plain, locks were notadded. MAKING EAVE TROUGH. The outside line on the larger of the two small diagrams… … 3^o large diagram shows the log with the trough clamped to it.It will be seen that a ^-inch piece is secured to the flat sideof the log, which piece projects ^ of an inch beyond one edge of the log. A rocker may also be placed under the log.The log is secured to the bench by hooks or staples with…
