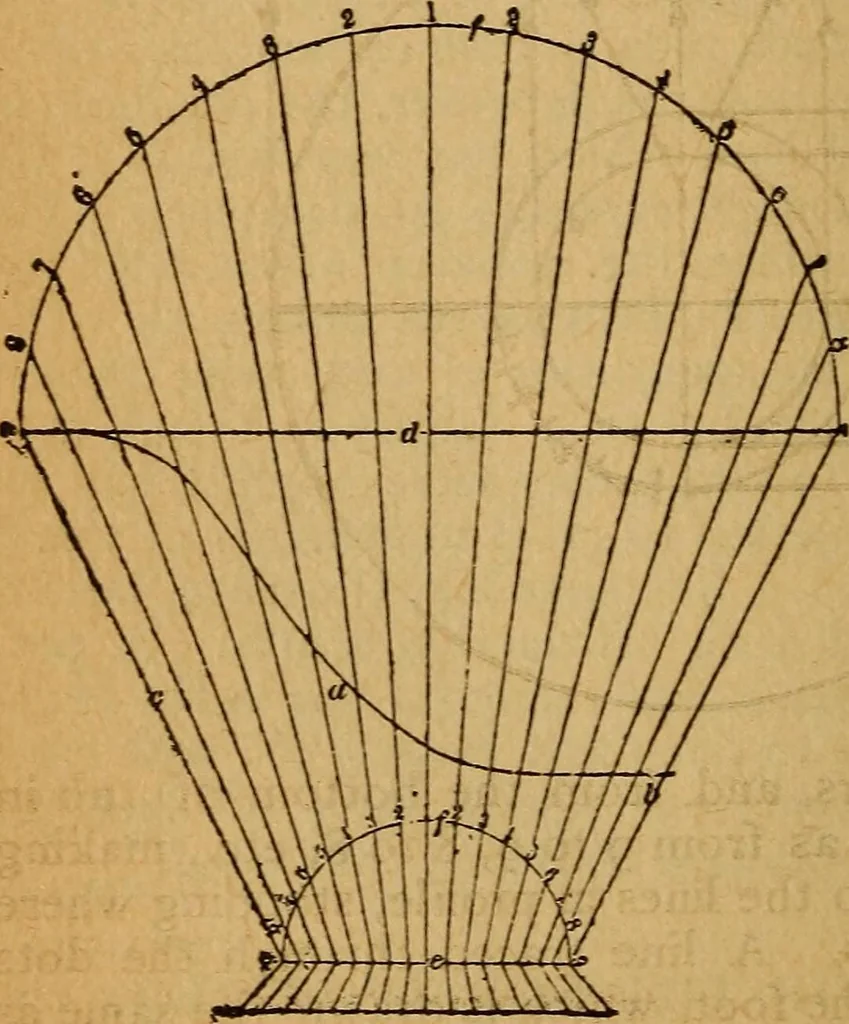

Strike the half-circleff^ and divide intoany number of equalparts, as i, 2, 3, 4,etc. (the more linesthe better). For thepoints draw lines asshown in profile. Set dividers same aswhen the circles inFig. I w^ere described, and strike the circles g g, and with aT square draw the perpendicular lines h… … 407 circles m m. Draw line 7t, and, taking it as the center line,step each way one-fourth of the circumference, in as many-parts as in profile, i, 2, 3, 4, etc., and draw lines same as inFig. I. Fig. 2.
